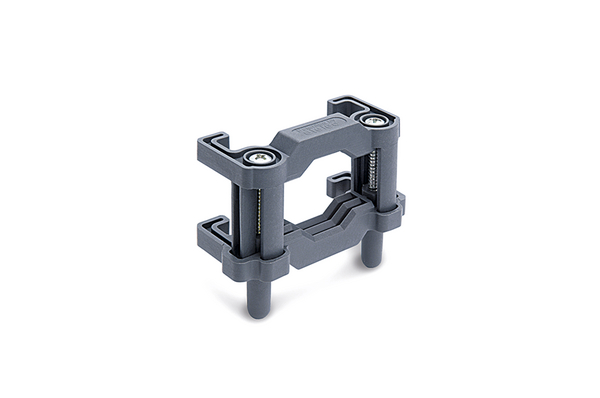

Gel accessories RelifixZE

RELICON Relifix ZE, Article number: 435-00700

Features

  • Releasable strain relief
  • Quick and easy installation
  • Only for Relifix 416, V516, V525
  • For conductor cross-sections of 6 -25 mm²

Certifications & Approvals

Application

Relifix ZE is an optional accessory providing strain relief when using cable joints Relifix 416, Relifix V516 and Relifix V525. Suitable for conductor cross-sections from 6 mm² to 25 mm².

Colour Grey (GY)
Content 2 Relifix ZE each with two fixing screws Installation instructions
Description Short (BMEcat) (max. 150 characters) Releasable strain relief Relifix 416, V516 und V525 6-25
GLOBAL PART DESCRIPTION RelifixZE-PP-GY
Pack Cont. 1Set
Package Quantity per pcs.
Product Family RELICON Relifix ZE
Product Group Gel accessories
ELV compliant Dir. Art. 4 (2) YES
Hazardous good No
Material Polypropylene (PP)
Operating Temperature - °C -20 °C to +90 °C
Shelf Life Unlimited
Specifications
EAN / GTIN 4250596414583
Packaging 1 - Height (m) 0.068m
Packaging 1 - Length (m) 0.175m
Packaging 1 - Qty 1
Packaging 1 - Type Pack
Packaging 1 - Volume (m³) 0.00161
Packaging 1 - Weight (kg) 0.064kg
Packaging 1 - Width (m) 0.135m
Packaging 3 - Height (m) 0.27m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 50
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0648
Packaging 3 - Weight (kg) 6.5kg
Packaging 3 - Width (m) 0.4m
Weight 0.059kg
ETIM 5.0 EC002837
ETIM 6.0 EC002837
