RELICON Religel Plus : Religel Plus 1.000

Two-component silicone gel, Article number: 435-00752

RELICON Religel Plus - Fast curing and heat resistant two-component silicone gel.

Features

  • Timesaving due to fast curing time
  • Stable up to 200 °C
  • Visual control of the homogenous mixture indicated by green-coloured component B
  • Multiple use possible, mixing ratio 1:1
  • Excellent flow and insulating properties
  • Excellent moisture and chemical resistance
  • Soft elastic, vibration absorbing and removable residue-free

Certifications & Approvals

Application

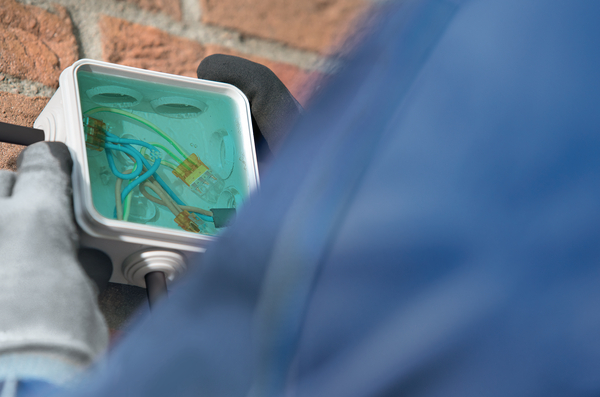

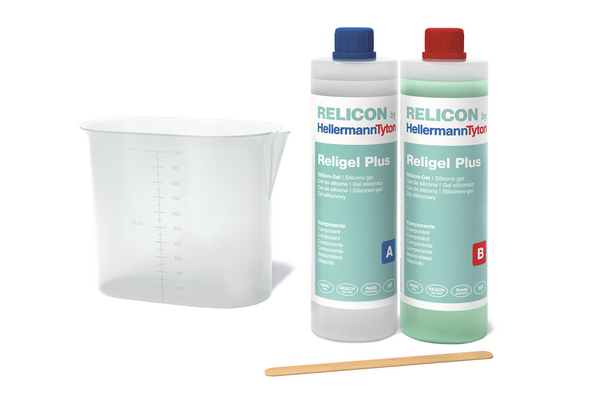

RELICON Religel Plus is a green-transparent, elastic 2-component silicone gel. It is packed in practical bottles or canisters including measuring cup and mixing stick. It is particularly suited to fill junction boxes for low voltage applications. Electrical insulation in low-voltage applications, Encapsulation of cables and wires in junction boxes, Building and household installations, Belowground, submerged.

Religel Plus is suitable for following markets and industries

Application 2 individually dosable, quick and easy to handle
Application Tool PTS4, ASS103, RCS0425
Colour Green (GN), Transparent (CL)
Density 0.97 g/cm³, 20 °C (DIN EN ISO 2811-2)
Pack Cont. 1000ml
Package Quantity per Bottle
PART DESCRIPTION Religel Plus 1.000-SI-CL/GN
Pot Life 5 min. 23 °C
Product Family Religel Plus
Product Group RELICON Religel Plus
Short Description Two-component silicone gel
Viscosity 1000 mPa*s, 23 °C (EN ISO 2555)
CE Certification Yes
Dielectric Strength >25 kV/mm
ELV compliant Dir. Art. 4 (2) YES
Halogenfree Yes
Hazardous good No
Material Silicone (SI)
Operating Temperature - °C -60 °C to +200 °C
Shelf Life Unlimited
Specifications
Specifications IEC 60529; Edition 2.2, 2013-08
Vibrations absorbing Yes
EAN / GTIN 4031026599663
Packaging 1 - Height (m) 0.23m
Packaging 1 - Length (m) 0.18m
Packaging 1 - Qty 1
Packaging 1 - Type Carton
Packaging 1 - Volume (m³) 0.00393
Packaging 1 - Weight (kg) 1.257001kg
Packaging 1 - Width (m) 0.095m
Packaging 4 - Height (m) 0.964m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 126
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.925
Packaging 4 - Weight (kg) 211.262kg
Packaging 4 - Width (m) 0.8m
Spray content 970g
Storage Temperature +4 °C to +40 °C
Weight 1.257kg
ETIM 6.0 EC001170
ETIM 7.0 Key EC001168
