RELICON Religel Plus : Religel Plus 10.000

Religel Plus, Article number: 435-00753

Two-component silicone gel Religel.

Features

  • Timesaving due to fast curing time
  • Stable up to 200 °C
  • Visual control of the homogenous mixture indicated by green-coloured component B
  • Multiple use possible, mixing ratio 1:1
  • Excellent flow and insulating properties
  • Excellent moisture and chemical resistance
  • Soft elastic, vibration absorbing and removable residue-free

Certifications & Approvals

Application

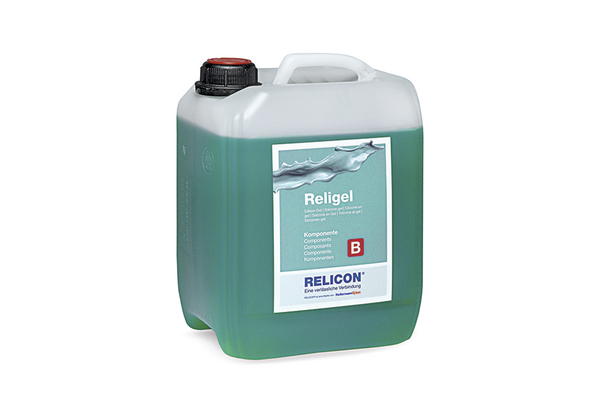

RELICON Religel Plus is a green-transparent, elastic 2-component silicone gel. It is packed in practical bottles or canisters including measuring cup and mixing stick. It is particularly suited to fill junction boxes for low voltage applications. Electrical insulation in low-voltage applications, Encapsulation of cables and wires in junction boxes, Building and household installations, Belowground, submerged.

Application 2 individually dosable, quick and easy to handle
Application Tool PTS4, ASS103, RCS0425
Colour Green (GN), Transparent (CL)
Density 0.97 g/cm³, 20 °C (DIN EN ISO 2811-2)
Pack Cont. 10000ml
Package Quantity per Bulk
PART DESCRIPTION Religel Plus 10.000-SI-CL/GN
Pot Life 5 min. 23 °C
Product Family Religel Plus
Product Group RELICON Religel Plus
Short Description Religel Plus
Viscosity 1000 mPa*s, 23 °C (EN ISO 2555)
CE Certification Yes
Dielectric Strength >25 kV/mm
ELV compliant Dir. Art. 4 (2) YES
Halogenfree Yes
Hazardous good No
Material Silicone (SI)
Operating Temperature - °C -60 °C to +200 °C
Shelf Life Unlimited
Specifications
Specifications IEC 60529; Edition 2.2, 2013-08
Vibrations absorbing Yes
EAN / GTIN 4031026599670
Packaging 3 - Height (m) 0.347m
Packaging 3 - Length (m) 0.435m
Packaging 3 - Qty 1
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0302
Packaging 3 - Weight (kg) 12.12kg
Packaging 3 - Width (m) 0.2m
Packaging 4 - Height (m) 0.964m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 14
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.925
Packaging 4 - Weight (kg) 222.56kg
Packaging 4 - Width (m) 0.8m
Spray content 9700g
Storage Temperature +4 °C to +40 °C
ETIM 6.0 EC001170
ETIM 7.0 Key EC001168
