Two-component silicone gel : Religel

Two-component silicone gel 1.000 ml, Article number: 435-00750

Two-component silicone gel Religel.

Features

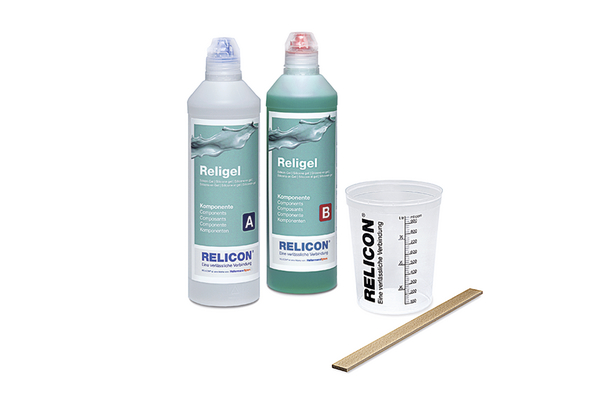

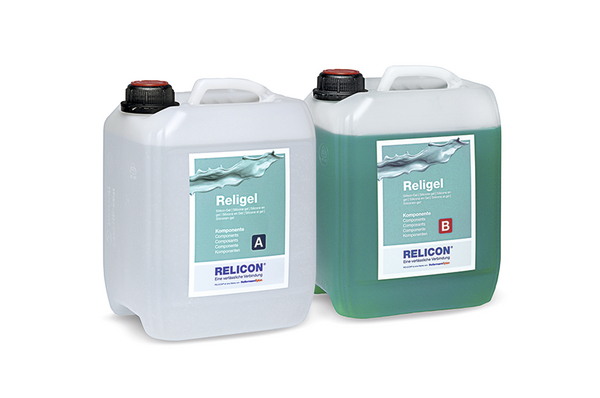

  • Bottles or canisters incl. measuring cup and mixing stick
  • Homogenous mixture indicated by green-coloured component B
  • Can be used flexibly, in smaller quantities, mixing ratio 1:1
  • Excellent flow properties
  • Soft elastic, vibration absorbing, removable
  • Outstanding insulating properties
  • Non-toxic, free of isocyanate
  • SVHC-free, contains no hazardous substances, the cured product can be disposed of with house hold waste
  • Halogen free

Certifications & Approvals

Application

RELICON Religel is a transparent, elastic two-component silicone gel. It is delivered in practical transparent bottles or canisters. It is particularly suited to fill junction boxes in low-voltage applications. After curing, RELICON Religel gives excellent resistance to moisture, has high insulating properties and very good chemical resistance.
Application: Electrical insulation and moisture protection for low-voltage applications, particularly suitable for insulating cables and wires in junction boxes.

RELICON Religel is suitable for following markets and industries

Application Tool PTS4, ASS103, RCS0425
Colour Transparent (CL), Green (GN)
Density 0.97 g/cm³, 20 °C (DIN EN ISO 2811-2)
Pack Cont. 1000ml
Package Quantity per Bottle
PART DESCRIPTION Religel-SI-CL/GN
Pot Life 10 min. 23 °C
Product Family RELICON Religel
Product Group Two-component silicone gel
Removable Yes
Short Description Two-component silicone gel 1.000 ml
Viscosity 1000 mPa*s, 23 °C (EN ISO 2555), 1500 mPa*s, 5 °C (EN ISO 2555)
Dielectric Strength >20 kV/mm
ELV compliant Dir. Art. 4 (2) YES
Halogenfree Yes
Hazardous good No
Material Silicone (SI)
Operating Temperature - °C -40 °C to +140 °C
Shelf Life Unlimited
Specifications
Vibrations absorbing Yes
EAN / GTIN 4250596418666
Packaging 1 - Height (m) 0.24m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 1
Packaging 1 - Type Pack
Packaging 1 - Volume (m³) 0.0069
Packaging 1 - Weight (kg) 1.3kg
Packaging 1 - Width (m) 0.125m
Spray content 1074g
Storage Temperature +4 °C to +40 °C
Weight 1.3kg
ETIM 6.0 EC001170
ETIM 7.0 Key EC001168
