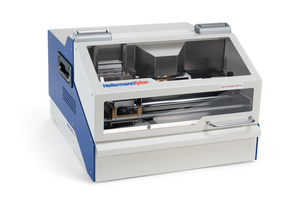

Stainless steel embossing system M-BOSS Compact Organiser
M-BOSS Compact inlcuding Organiser, Article number: 544-21000
Features
- Ability to manage how the printed marker plates are organised
- Carousel system under the printer has 10 removable marker plate containers
- Flexible output means all marker plates or a set amount can be sent to each container
- Carousel system will hold up to 400 markers
- Each container can hold 40 marker plates
Certifications & Approvals
Application
The M-BOSS Compact with included Organiser system gives the added advantage of a self-contained storage system within the print unit.
The organiser is a 10 container carousel storage system that can be programmed to hold either an individual or a pre-defined set of marker plates. This means that users have the flexibility to manage how they work with the printed output. A simple input screen on the top of the machine is used to specify the quantity per container within the carousel. The carousel drawer when opened extends 430 mm from the front of the printer.
M-BOSS Compact inlcuding Organiser is suitable for following markets and industries
-
Offshore Industry
-
Rail Transportation Sector
-
Shipbuilding
-
Solar Energy Sector
-
Wind Energy Sector
-
Food Industry
More products in this product group
Stainless steel embossing system >| Application 2 | Offshore Platforms, Refineries, Floating Production Storage – Offloading (FPSO), as well as Rail Infrastructure, Utilities, Food, and Solar Farms. |
| Colour | Blue (BU) |
| Description Short (BMEcat) (max. 150 characters) | Metal Plate Embossing Printer plus 10 Container Carousel Storage System for Metal Marker Plates |
| For Ties | MBT5S, MBT8S, MBT14S, MBT20S, MBT27S, MBT33S |
| GLOBAL PART DESCRIPTION | M-BOSS Compact Organiser-BU |
| Pack Cont. | 1pc. |
| Package Quantity per | Box |
| Product Family | M-BOSS Compact inlcuding Organiser |
| Product Group | Stainless steel embossing system |
| System Requirements | MS Windows XP SP3, Vista SP1, Win7, Win8 |
| Cycle Time | 1 second per character |
| Depth (D) | 570mm |
| Diameter (D) | 370mm |
| Height (H) | 353.0mm |
| Length (L) | 475mm |
| Power Supply | AC 110V-240V, 45/65 Hz, 1.5A-3A |
| Print Method | Embossing |
| Strap Width max. (G) | 4.6mm |
| Strap Width max. (G) (imperial) | 0.18" |
| Width (W) | 480mm |
| ∅ D (imperial) | 14.56" |
| ELV compliant Dir. Art. 4 (2) | YES |
| Hazardous good | No |
| Interfaces | USB 2.0 |
| Specifications |
|
| Specifications | 2006/42/EG, EN 60204-1:2006, EN ISO 12100:2010 |
| Dimensions W x H x D | 480 mm x 353.0 mm x 570 mm |
| EAN / GTIN | 4031026491905 |
| Packaging 1 - Height (m) | 0.36m |
| Packaging 1 - Length (m) | 0.48m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | pcs. |
| Packaging 1 - Volume (m³) | 0.0985m³ |
| Packaging 1 - Weight (kg) | 45.0kg |
| Packaging 1 - Width (m) | 0.57m |
| Packaging 3 - Height (m) | 0.5m |
| Packaging 3 - Length (m) | 0.65m |
| Packaging 3 - Qty | 1 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.195m³ |
| Packaging 3 - Weight (kg) | 50.0kg |
| Packaging 3 - Width (m) | 0.6m |
| Packaging 4 - Height (m) | 1.14m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 2 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.094m³ |
| Packaging 4 - Weight (kg) | 121.0kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 45.0kg |
| Weight | 99.21lbs |
| ETIM 6.0 | EC001672 |
| UNSPSC Key | 44102408 |
