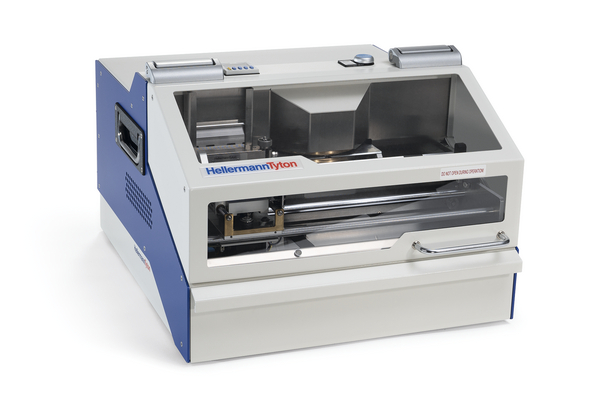

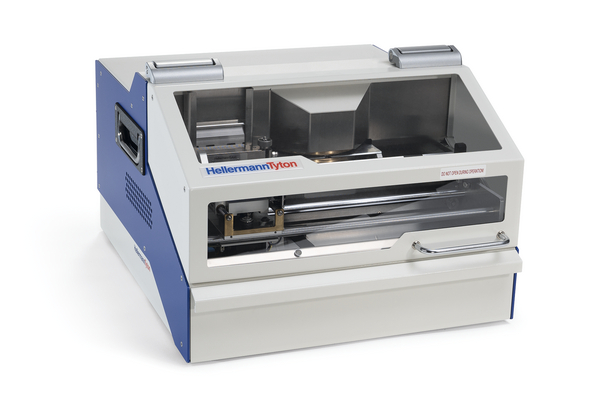

Stainless steel embossing system : M-BOSS Compact
Metal Plate Embossing PrinterArticle number: 544-20000
Features
- Small and easy to use metal plate embosser

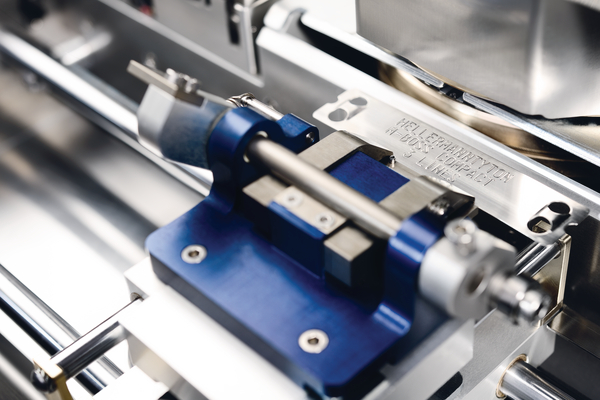

- Quiet embossing mechanism suited to production and office environments
- Embossed characters have been tested to withstand 1.5 million strikes each
- Improved cooling systems allows 8-10 hours continuous printing
- Use TagPrint Pro labelling software with pre-loaded templates to simplify print jobs

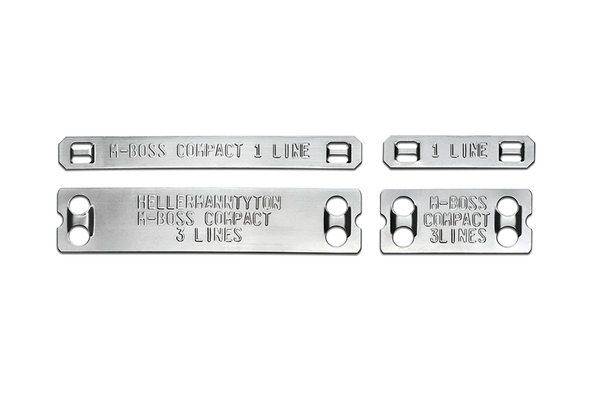

- 45 piece character set as standard - can be upgraded to 60 characters
- Letters: A B C D E F G H I J K L M N 0 P Q R S T U V W X Y Z
- Numbers: 0 1 2 3 4 5 6 7 8 9
- Symbols: & - / . , ’
- Other symbols available on request
Certifications & Approvals
Application
M-BOSS Compact is a quiet easy-to-use metal plate embossing printer with a small production footprint. It is simple to install and operate and only needs a standard electrical supply and a PC. Texts are created with Tagprint Pro. Simply open the easy to use program to create print lists.
Improved cooling system now ensures a continuous operation between 8-10 hours.

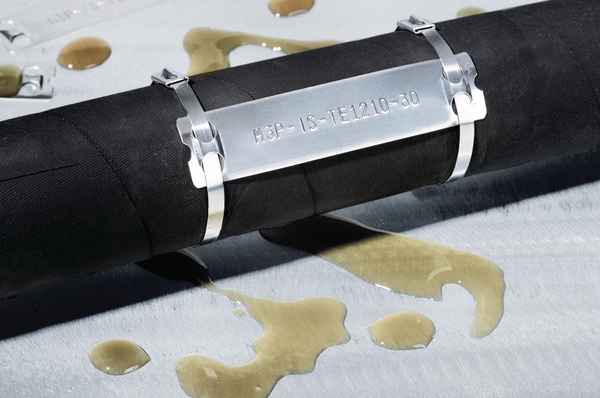

Marker plates are attached to pipes and cables using 4.6 mm width MBT cable ties and a MK9SST hand tool.
More products in this product group
Stainless steel embossing system >| Application 2 | Offshore Platforms, Refineries, Floating Production Storage – Offloading (FPSO), as well as Rail Infrastructure, Utilities, Food, and Solar Farms. |
| Colour | Blue (BU) |
| For Ties | MBT5S, MBT8S, MBT14S, MBT20S, MBT27S, MBT33S |
| Pack Cont. | 1pc. |
| Package Quantity per | Box |
| PART DESCRIPTION | M-BOSS Compact-BU |
| Product Family | M-BOSS Compact |
| Product Group | Stainless steel embossing system |
| Short Description | Metal Plate Embossing Printer |
| System Requirements | MS Windows XP SP3, Vista SP1, Win 7, 8, 10 |
| Cycle Time | 1 second per character |
| Depth (D) | 570mm |
| Height (H) | 353mm |
| Power Supply | AC 110V-240V, 45/65 Hz, 1.5A-3A |
| Print Method | Embossing |
| Strap Width max. (G) | 4.6mm |
| Strap Width max. (G) (imperial) | 0.18" |
| Width (W) | 480mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Hazardous good | No |
| Interfaces | USB 2.0 |
| Specifications |
|
| Specifications | 2006/42/EG, EN 60204-1:2006, EN ISO 12100:2010 |
| Dimensions W x H x D | 480 mm x 353 mm x 570 mm |
| EAN / GTIN-13 | 4031026491899 |
| Packaging 1 - Height (m) | 0.36m |
| Packaging 1 - Length (m) | 0.48m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | pcs. |
| Packaging 1 - Volume (m³) | 0.0985m³ |
| Packaging 1 - Weight (kg) | 41.0kg |
| Packaging 1 - Width (m) | 0.57m |
| Packaging 3 - Height (m) | 0.5m |
| Packaging 3 - Length (m) | 0.65m |
| Packaging 3 - Qty | 1 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.195m³ |
| Packaging 3 - Weight (kg) | 46.0kg |
| Packaging 3 - Width (m) | 0.6m |
| Packaging 4 - Height (m) | 1.14m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 2 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.094m³ |
| Packaging 4 - Weight (kg) | 113.0kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 90.39lbs |
| Weight | 41.0kg |
| ETIM 6.0 | EC001672 |
| ETIM 7.0 Key | EC001672 |
| UNSPSC Key | 44102408 |
