Accessory, Hellermark, natural, 100pcs. (SSCPP (Plastic))
Art.-No. 540-02011 | SSCPP (Plastic)-PMMA-NA Details

  • For pre-embossed markers and stainless steel ties with 7 mm wide straps
  • Hold 5-45 markers depending on carrier length
  • Special buckle so cable ties can easily be fed through carrier
  • Quick attachment to cables and pipes
  • Each carrier holds 2 carrier plugs on end to ensure markers stay in place
  • Carrier ends can be closed with pliers
  • Carriers can be fixed to flat surface and riveted in place
Show more

Request your individual offer now

Application Hellermark is used in the rail, marine, offshore, petrochemical, food and construction industries, for the identification of cables, pipes and other equipment in harsh environments.
Chem. Material Properties Corrosion resistant, weather resistant, antimagnetic. Outstanding chemical resistance to aggressive chemicals, e.g. industrial vapours, seawater, salt spray in onshore and offshore areas, inorganic acids, hydrochloric acid and halogen salts.
Colour Natural (NA)
Fixation Method push on
Material Acrylic Glass (PMMA)
PART DESCRIPTION SSCPP (Plastic)-PMMA-NA
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family Hellermark SSC
Product Group Stainless steel pre-embossed marking system, manual
Short Description End Clip
Type SSCPP (Plastic)
Variant Other
With label space No

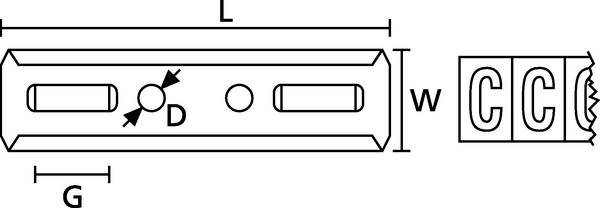

Diameter (D) 3mm
Length (L) 7mm
Strap Width max. (G) 7.9mm
Weight/Unit 0.0003kg
Width (W) 11.0mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Limited Fire Hazard Yes
Operating Temperature -40 °C to +80 °C
ROHS compliant Yes
Specifications
Country of Origin SE
Customs Number 83100000
GTIN-13 / EAN 4031026461571
Packaging 1 - Height (m) 0.1m
Packaging 1 - Length (m) 0.07m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00119
Packaging 1 - Weight (kg) 0.030001kg
Packaging 1 - Width (m) 0.17m
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
