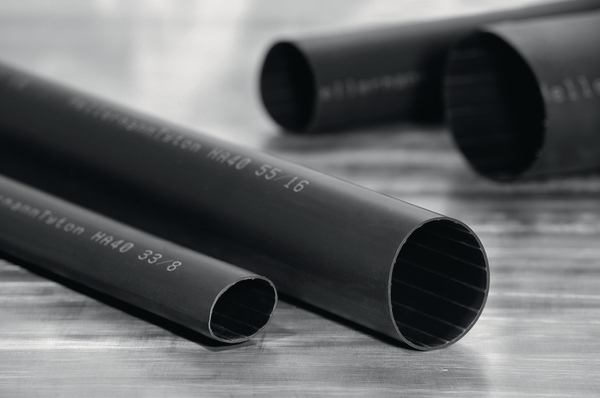

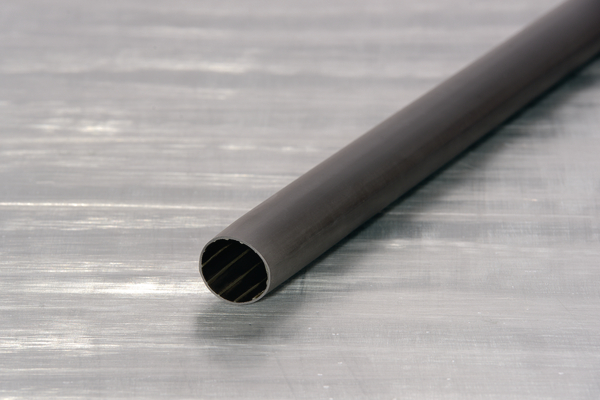

Heat Shrinkable Tubing 4:1 Thick Wall Adhesive Lined length 1m 13/4 black GL-certificated
Art.-No. 321-00101 | HA40-13/4-PO-X-BK Details

  • Thick wall adhesive lined shrink tubing for low voltage power cables
  • Designed for shipbuilding, Germanische Lloyd approved
  • Flame retardant
  • UV and weather resistant
  • Excellent mechanical performance
Show more

Request your individual offer now

Application Designed for low voltage cable joints and terminations in shipbuilding. Insulates and protects against moisture.
Application Tool CHG900
Behaviour At Low Temperature not cracking
Behaviour at Heat Shock not cracking
Behaviour at low Temperature test method ASTM D2671
Colour Black (BK)
Elongation At Heat Aging 300%
Heat Aging Test 168h/150°C
Heat Aging test method ASTM D2671
Heat Shock Test 4h/225°C
Material Polyolefin, cross-linked (PO-X)
Minimum Tensile Strength At Heat Aging 12MPa
PART DESCRIPTION HA40-13/4-PO-X-BK
Pack Cont. 250pcs.
Package Content packed in Lengths
Printable No
Product Family HA40 - thick wall adhesive lined
Product Group Heat shrinkable tubing 4:1 - Flame retardant
Short Description Heat Shrinkable Tubing 4:1 Thick Wall Adhesive Lined length 1m 13/4 black GL-certificated
Shrink Ratio up to 4:1
Type HA40-13/4
Variant Thick-Wall
With inner glue (Yes/No) Yes
Length (L) 1.0m
Longitudinal Change After Shrinkage -10% max.
Recov. ∅ d 4.0mm
Supplied ∅ D 13.0mm
Wall (WT) 2.2mm
Weight/Unit 0.0651kg
Adhesive Hot melt adhesive
Dielectric Strength 15kV/mm
Dielectric Strength test method IEC 60243-1
ELV compliant Dir. Art. 4 (2) YES
Elongation at break 300
Elongation at break test method ASTM D2671
Halogen-free No
Hazardous Goods No
Limited Fire Hazard Yes
Minimum Shrink Temperature - °C +120 °C
Operating Temperature -55 °C to +110 °C
ROHS compliant Yes
Self extinguishing Yes
Softening Point Adhesive +85 °C
Specifications DIN EN ISO 8580, DNV
Specifications
Tensile Strength 12MPa
Tensile Strength test method IEC 93
Test Method Tensile Strength ASTM D2671
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
Volume Resistance 10¹⁴ Ω cm
Country of Origin CN
Customs Number 39173200
GTIN-13 / EAN 4031026461243
Packaging 1 - Height (m) 0.045m
Packaging 1 - Length (m) 1.0m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0027
Packaging 1 - Weight (kg) 0.651001kg
Packaging 1 - Width (m) 0.06m
Packaging 3 - Height (m) 0.27m
Packaging 3 - Length (m) 1.065m
Packaging 3 - Qty 250
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.082
Packaging 3 - Weight (kg) 16.775kg
Packaging 3 - Width (m) 0.285m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 1500
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 121.65kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000217
ETIM 8.0 Key EC000217
ETIM 9.0 Key EC000217
UNSPSC Key 39121723
