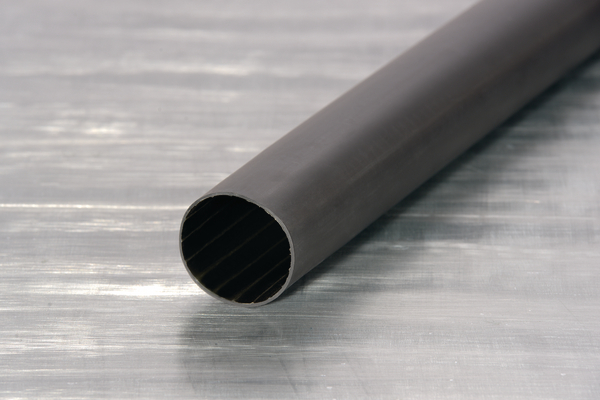

Heat Shrinkable Tubing 4:1 Thick Wall Adhesive Lined length 1m 33/8 black GL-certificated
Art.-No. 321-00103
| HA40-33/8-PO-X-BK
|
Details
- Thick wall adhesive lined shrink tubing for low voltage power cables
- Designed for shipbuilding, Germanische Lloyd approved
- Flame retardant
- UV and weather resistant
- Excellent mechanical performance
Request your individual offer now
Request quote
More products in this product group:
Application | Designed for low voltage cable joints and terminations in shipbuilding. Insulates and protects against moisture. |
Behaviour At Low Temperature | not cracking |
Behaviour at Heat Shock | not cracking |
Behaviour at low Temperature test method | ASTM D2671 |
Colour | Black (BK) |
Elongation At Heat Aging | 300% |
Heat Aging Test | 168h/150°C |
Heat Aging test method | ASTM D2671 |
Heat Shock Test | 4h/225°C |
Material | Polyolefin, cross-linked (PO-X) |
Minimum Tensile Strength At Heat Aging | 12MPa |
PART DESCRIPTION | HA40-33/8-PO-X-BK |
Pack Cont. | 3m |
Package Content packed in | pcs. |
Printable | No |
Product Family | HA40 - thick wall adhesive lined |
Product Group | Heat shrinkable tubing 4:1 - Flame retardant |
Short Description | Heat Shrinkable Tubing 4:1 Thick Wall Adhesive Lined length 1m 33/8 black GL-certificated |
Shrink Ratio | up to 4:1 |
Type | HA40-33/8 |
Variant | Thick-Wall |
With inner glue (Yes/No) | Yes |
Adhesive | Hot melt adhesive |
Dielectric Strength | 15kV/mm |
Dielectric Strength test method | IEC 60243-1 |
ELV compliant Dir. Art. 4 (2) | YES |
Elongation at break | 300 |
Elongation at break test method | ASTM D2671 |
Halogen-free | No |
Hazardous Goods | No |
Limited Fire Hazard | No |
Minimum Shrink Temperature | +120 °C |
Operating Temperature | -55 °C to +110 °C |
ROHS compliant | Yes |
Self extinguishing | Yes |
Softening Point Adhesive | +85 °C |
Specifications | DIN EN ISO 8580, DNV |
Specifications | |
Tensile Strength | 12MPa |
Test Method Tensile Strength | ASTM D2671 |
UL Listed (US and Canada) | No |
UL Recognized (US) | No |
Volume Resistance | 10¹⁴ Ω cm |
Volume Resistance test method | IEC 93 |
|
|
Country of Origin | CN |
Customs Number | 39173200 |
GTIN-13 / EAN | 4031026461267 |
Packaging 1 - Height (m) | 0.055m |
Packaging 1 - Length (m) | 1.2m |
Packaging 1 - Qty | 3 |
Packaging 1 - Type | Bag |
Packaging 1 - Volume (m³) | 0.00726m³ |
Packaging 1 - Weight (kg) | 0.474001kg |
Packaging 1 - Width (m) | 0.11m |
Packaging 3 - Height (m) | 0.39m |
Packaging 3 - Length (m) | 1.035m |
Packaging 3 - Qty | 96 |
Packaging 3 - Type | Carton |
Packaging 3 - Volume (m³) | 0.1574m³ |
Packaging 3 - Weight (kg) | 15.668kg |
Packaging 3 - Width (m) | 0.39m |
Packaging 4 - Height (m) | 0.924m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 384 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 0.887m³ |
Packaging 4 - Weight (kg) | 83.672kg |
Packaging 4 - Width (m) | 0.8m |
