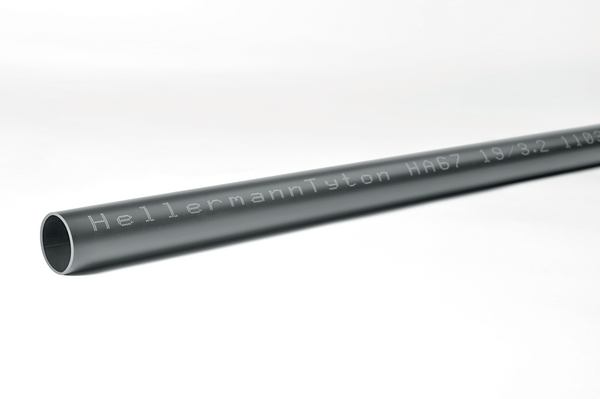

Heat Shrinkable Tubing 6:1 Thick Wall Adhesive Lined length 1.22m 19.0/3.2 black
Art.-No. 321-30000 | HA67-19.0/3.2-PO-X-BK Details

  • High shrink ratio, heavy-duty heat shrinkable tubing
  • Thermoplastic adhesive-lined tubing
  • Conforms well to highly variable substrate dimensions
  • Simplifies cable repair
  • Passes over large connectors and shrinks onto much smaller cable jackets
  • Environmental sealing and excellent insulation
  • Resistant to impact and abrasion
Show more

Request your individual offer now

Application Insulates, seals and protects large size differences between connectors and cables.
Application Tool CHG900
Colour Black (BK)
Material Polyolefin, cross-linked (PO-X)
Pack Cont. 10pcs.
Package Content packed in pcs.
PART DESCRIPTION HA67-19.0/3.2-PO-X-BK
Printable No
Product Family HA67
Product Group Heat Shrinkable Tubing 6:1, adhesive lined in 1.2 m cuts
Short Description Heat Shrinkable Tubing 6:1 Thick Wall Adhesive Lined length 1.22m 19.0/3.2 black
Shrink Ratio 6:1
Variant Thick-Wall
Voltage range Low Voltage , up to 1,000 Volt
With inner glue (Yes/No) Yes
Diameter (D) 19.0mm
Length (L) 1.2m
Longitudinal Change After Shrinkage -10% max.
Nominal ∅ 19.0mm
Nominal ∅ (imperial) .75"
Recov. ∅ d 3.2mm
Supplied ∅ D 19.0mm
Tube Shape Round
Wall (WT) 3.2mm
Weight/Unit 0.09194kg
∅ D (imperial) 0.75"
Adhesive Hot melt adhesive
CE Certification Yes
Copper corrosion non-corrosive
CSA Certified No
Dielectric Strength 20kV/mm
Dielectric Strength test method IEC 243
Elongation at break ≥400%
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
Minimum Shrink Temperature - °C +120 °C
Operating Temperature -55 °C to +110 °C
Softening Point Adhesive +85 °C
Specifications
Tensile Strength 14MPa
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) No
Volume Resistance 10¹⁴ Ω cm
Country of Origin CN
Customs Number 39173200
GTIN-13 / EAN 4031026322865
Packaging 1 - Height (m) 0.065m
Packaging 1 - Length (m) 1.23m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.008
Packaging 1 - Weight (kg) 0.919401kg
Packaging 1 - Width (m) 0.1m
Packaging 3 - Height (m) 0.3m
Packaging 3 - Length (m) 1.265m
Packaging 3 - Qty 180
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.1499
Packaging 3 - Weight (kg) 17.049kg
Packaging 3 - Width (m) 0.395m
Packaging 4 - Height (m) 0.964m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 360
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.925
Packaging 4 - Weight (kg) 86.978kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000217
ETIM 8.0 Key EC000217
ETIM 9.0 Key EC000217
UNSPSC Key 39121723
