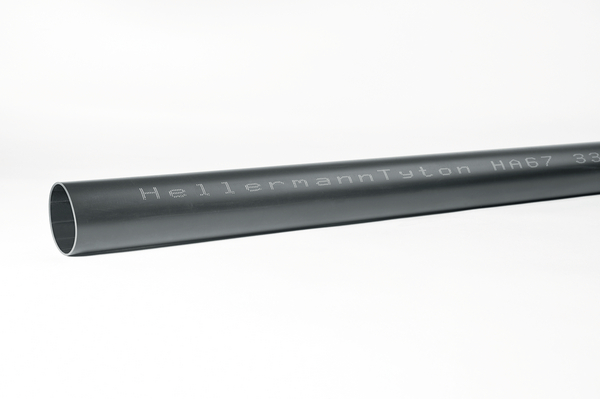

Heat Shrinkable Tubing 6:1 Thick Wall Adhesive Lined length 1.22m 33.0/5.5 black
Art.-No. 321-30100 | HA67-33.0/5.5-PO-X-BK Details

  • High shrink ratio, heavy-duty heat shrinkable tubing
  • Thermoplastic adhesive-lined tubing
  • Conforms well to highly variable substrate dimensions
  • Simplifies cable repair
  • Passes over large connectors and shrinks onto much smaller cable jackets
  • Environmental sealing and excellent insulation
  • Resistant to impact and abrasion
Show more

Request your individual offer now

Application Insulates, seals and protects large size differences between connectors and cables.
Application Tool CHG900
Colour Black (BK)
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION HA67-33.0/5.5-PO-X-BK
Pack Cont. 3pcs.
Package Content packed in pcs.
Printable No
Product Family HA67
Product Group Heat Shrinkable Tubing 6:1, adhesive lined in 1.2 m cuts
Short Description Heat Shrinkable Tubing 6:1 Thick Wall Adhesive Lined length 1.22m 33.0/5.5 black
Shrink Ratio 6:1
Type HA67-33.0/5.5
Variant Thick-Wall
Voltage range Low Voltage , up to 1,000 Volt
With inner glue (Yes/No) Yes
Diameter (D) 33.0mm
Length (L) 1.2m
Longitudinal Change After Shrinkage -10% max.
Nominal ∅ 33.0mm
Nominal ∅ (imperial) 1.25"
Recov. ∅ d 5.5mm
Supplied ∅ D 33.0mm
Tube Shape Round
Wall (WT) 3.4mm
Weight/Unit 0.14818kg
∅ D (imperial) 1.25"
Adhesive Hot melt adhesive
CE Certification Yes
CSA Certified No
Copper corrosion non-corrosive
Dielectric Strength 20kV/mm
Dielectric Strength test method IEC 243
ELV compliant Dir. Art. 4 (2) YES
Elongation at break ≥400%
Halogen-free Yes
Hazardous Goods No
Minimum Shrink Temperature - °C +120 °C
Operating Temperature -55 °C to +110 °C
ROHS compliant Yes
Softening Point Adhesive +85 °C
Specifications
Tensile Strength 14MPa
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
Volume Resistance 10¹⁴ Ω cm
Country of Origin CN
Customs Number 39173200
GTIN-13 / EAN 4031026322896
Packaging 1 - Height (m) 0.1m
Packaging 1 - Length (m) 1.22m
Packaging 1 - Qty 3
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0183
Packaging 1 - Weight (kg) 0.46054kg
Packaging 1 - Width (m) 0.15m
Packaging 3 - Height (m) 0.38m
Packaging 3 - Length (m) 1.26m
Packaging 3 - Qty 108
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.1819
Packaging 3 - Weight (kg) 19.279kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 0.964m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 216
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.925
Packaging 4 - Weight (kg) 91.439kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000217
ETIM 8.0 Key EC000217
ETIM 9.0 Key EC000217
UNSPSC Key 39121723
