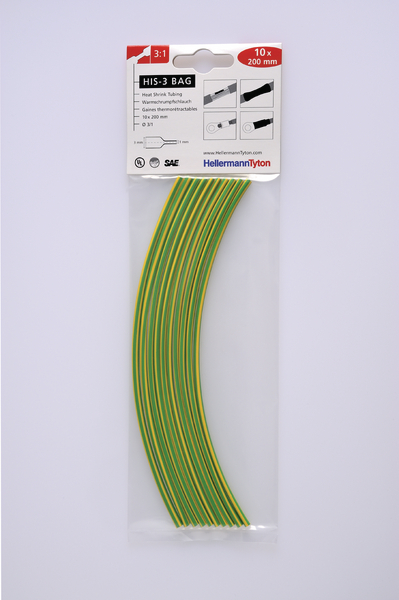

Heat Shrinkable Tubing 3:1 green/yellow in blister bags 12/4
Art.-No. 308-31217 | HIS-3-BAG-12/4-PO-X-GNYE Details

  • Thin wall and flexible tubing made of cross-linked Polyolefin
  • High shrink ratio 3:1
  • Handy, small packaging with 10 pre-cut pieces of 200 mm
  • Fits highly variable cable diameters

Request your individual offer now

Application HIS-3 BAG tubings are useable for insulation and protection of cables and harnesses.
Application Tool H6100
Behaviour at Heat Shock not fluid, not dripping, not cracking
Behaviour At Low Temperature not cracking
Behaviour at low Temperature test method UL 224
Colour Green-Yellow (GNYE)
Elongation At Heat Aging 400%
Heat Aging Test 168h/175°C
Heat Aging test method UL 224
Heat Shock Test 4h/250°C
Material Polyolefin, cross-linked (PO-X)
Minimum Tensile Strength At Heat Aging 13MPa
Pack Cont. 10pcs.
Package Content packed in Bag
PART DESCRIPTION HIS-3-BAG-12/4-PO-X-GNYE
Printable No
Product Family HIS-3 BAG
Product Group Heat Shrinkable Tubing 3:1 in blister bags
Short Description Heat Shrinkable Tubing 3:1 green/yellow in blister bags 12/4
Shrink Ratio 3:1
Variant Thin-Wall
With inner glue (Yes/No) No
Length (L) 200.0mm
Longitudinal Change After Shrinkage +/-5%
Recov. ∅ d 4.0mm
Supplied ∅ D 12.7mm
Wall (WT) 0.80mm
Weight/Unit 0.004371kg
Dielectric Strength 32kV/mm
Dielectric Strength test method IEC 60243
Elongation at break 800
Elongation at break test method ASTM D2671
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 224 VW-1
Halogen-free No
Hazardous Goods No
Insulation Class B (VDE 0530)
Minimum Shrink Temperature - °C +100 °C
Operating Temperature -55 °C to +135 °C
Self extinguishing Yes
Specifications
Specifications ANSI/UL 224
Tensile Strength 14MPa
Tensile Strength test method UL 224
Test Method Tensile Strength ASTM D2671
UL OCD link Link Link
UL-File Number E143529
Volume Resistance 10¹⁴ Ω cm
Water Absorption 0.15%
Country of Origin CN
Customs Number 39173200
GTIN-13 / EAN 4031026441092
Packaging 1 - Height (m) 0.015m
Packaging 1 - Length (m) 0.29m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00037
Packaging 1 - Weight (kg) 0.043711kg
Packaging 1 - Width (m) 0.085m
ETIM 7.0 Key EC000217
ETIM 8.0 Key EC000217
ETIM 9.0 Key EC000217
UNSPSC Key 39121723
