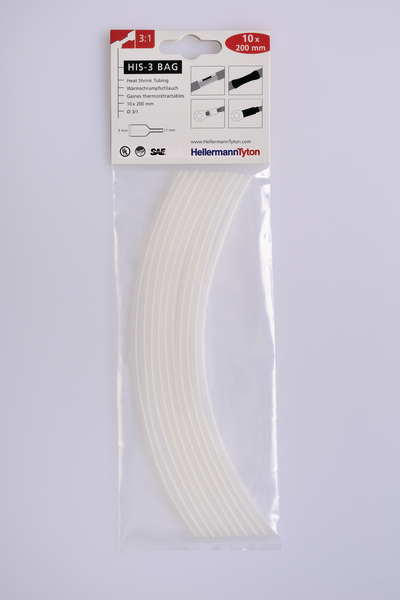

Heat Shrinkable Tubing 3:1 transparent in blister bags 3/1
Art.-No. 308-30315 | HIS-3-BAG-3/1-PO-X-CL |

HIS-3 bag 3:1 transparent, width 112.

HIS-3 bag 3:1 black.

Heat Shrink Tubing 3:1

Thin wall and flexible tubing made of cross-linked Polyolefin
High shrink ratio 3:1
Handy, small packaging with 10 pre-cut pieces of 200 mm
Fits highly variable cable diameters

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Heat Shrinkable Tubing 3:1 in blister bags >

Base Data

Application	HIS-3 BAG tubings are useable for insulation and protection of cables and harnesses.
Behaviour At Low Temperature	not cracking
Behaviour at Heat Shock	not fluid, not dripping, not cracking
Behaviour at low Temperature test method	UL 224
Colour	Transparent (CL)
Elongation At Heat Aging	400%
Heat Aging Test	168h/175°C
Heat Aging test method	UL 224
Heat Shock Test	4h/250°C
Material	Polyolefin, cross-linked (PO-X)
Minimum Tensile Strength At Heat Aging	13MPa
PART DESCRIPTION	HIS-3-BAG-3/1-PO-X-CL
Package Content	10pcs.
Package Content packed in	Bag
Printable	No
Product Family	HIS-3 BAG
Product Group	Heat Shrinkable Tubing 3:1 in blister bags
Short Description	Heat Shrinkable Tubing 3:1 transparent in blister bags 3/1
Shrink Ratio	3:1
Type	HIS-3-BAG-3/1
Variant	Thin-Wall
Weight/Unit	0.001226kg
With inner glue (Yes/No)	No

Product Dimensions


Length (L)	200mm
Longitudinal Change After Shrinkage	+/-5%
Recov. ⌀ d	1.0mm
Supplied ⌀ D	3.2mm
Tube Shape	Round
Wall (WT)	0.55mm

Downloads

Specifications

Dielectric Strength	32kV/mm
Dielectric Strength test method	IEC 60243
ELV compliant Dir. Art. 4 (2)	YES
Elongation at break (min.)	800%
Elongation at break test method	ASTM D2671
Halogen-free	No
Hazardous Goods	No
Insulation Class	B (VDE 0530)
Minimum Shrink Temperature	+100 °C
Operating Temperature	-55 °C to +135 °C
ROHS compliant	Yes
Self extinguishing	No
Specifications
Specifications	CSA -C22.2 No.198.1
Tensile Strength	14MPa
Test Method Tensile Strength	ASTM D2671
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	Yes
Volume Resistance	10¹⁴ Ω cm
Volume Resistance test method	UL 224
Water Absorption	0.15%

Logistics and Packaging


Country of Origin	CN
Customs Number	39173200
GTIN-13 / EAN	4031026400327
Packaging 1 - Height (m)	0.007m
Packaging 1 - Length (m)	0.285m
Packaging 1 - Qty	10
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.000169575m³
Packaging 1 - Weight (kg)	0.012261kg
Packaging 1 - Width (m)	0.085m

More Information

ETIM 7.0 Key	EC000217
ETIM 8.0 Key	EC000217
ETIM 9.0 Key	EC000217
UNSPSC Key	39121723

Calculators

Calculator tool for Heat Shrink Tubing

Calculator tool for Heat Shrink Tubing

for HIS-3-BAG-3/1 - Art.-No.: 308-30315
In selecting the right shrink tubing size it is important to consider to "80:20 rule". Shrink tubing should recover at least 20% and maximum 80% of its potential shrink range.
According to which specification would you like to check if the selected product is suitable for your application?

diameter

Please enter either the smallest and/or the largest outer diameter of the substrate.

Min mm Max mm

Cross-Section

Please enter either the smallest and/or largest cross-section of the object to be covered.

Min mm² Max mm²

perimeter

Please enter either the smallest and/or largest perimeter of the object to be covered.

Min mm Max mm
Wall thickness calculator

Wall thickness calculator

for HIS-3-BAG-3/1 - Art.-No.: 308-30315

Depending on the substrate dimensions when Heat shrink tubing is recovered the diameter and the wall thickness will change. This Calculator aims to offer a theoretical wall thickness for this situation.Please enter the outer diameter of the object to be covered

Outer diameter of object (A)

mm

Inner diameter of tubing after shrinking (B)

mm

Wall thickness fully recovered ( C )

mm
