20/06/2024
Box Design change in 2023. No change to heat shrink tubing itself.

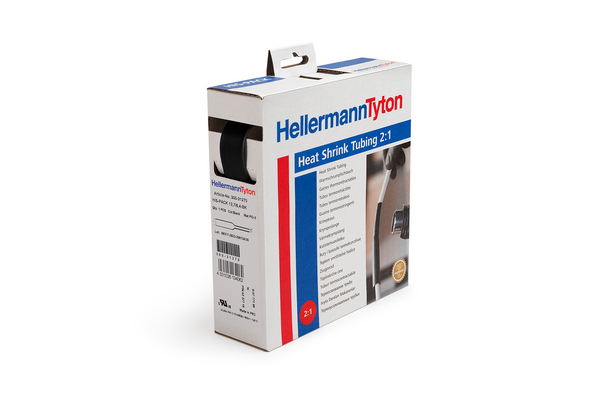

Heat Shrinkable Tubing 2:1 on a Reel 25,4/12,7 black
Art.-No. 300-32540 | HIS-PACK-25.4/12.7-PO-X-BK Details

  • Cross-linked Polyolefin, thin-wall and flexible
  • Handy dispenser box including table showing application size range
  • Available in black, red, blue, transparent and yellow/green
  • 10 sizes from 1.2 mm to 25.4 mm
  • Transparent color is halogen free
Show more

Request your individual offer now

Application HIS-PACK is used in general purpose of electrical insulation with a high level of protection against corrosion and mechanical abrasion.
Application Tool H6100
Behaviour at Heat Shock not dripping
Colour Black (BK)
Heat Aging Test 168h/175°C
Heat Shock Test 4h/250°C
Internet Customer Notice Box Design change in 2023. No change to heat shrink tubing itself.
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION HIS-PACK-25.4/12.7-PO-X-BK
Pack Cont. 5m
Package Content packed in Box
Printable No
Product Family HIS-PACK
Product Group Heat Shrinkable Tubing 2:1 on a Reel
Short Description Heat Shrinkable Tubing 2:1 on a Reel 25,4/12,7 black
Shrink Ratio 2:1
Size (imperial) 1"
Type HIS-PACK-25.4/12.7
Variant Thin-Wall
With inner glue (Yes/No) No
Length (L) 5.0m
Longitudinal Change After Shrinkage +/-5%
Nominal ∅ 25.4mm
Nominal ∅ (imperial) 1"
Recov. ∅ d 12.7mm
Recov. ∅ d max. (imperial) 0.5"
Supplied ∅ D 25.4mm
Supplied ∅ D min. (imperial) 1.0"
Wall (WT) 0.90mm
Wall (WT) (imperial) .035"
Weight/Unit 0.32kg
Dielectric Strength 20kV/mm
Dielectric Strength test method IEC 243
ELV compliant Dir. Art. 4 (2) YES
Elongation at break 800% (IEC 684 P2)
Flammability UL 224 VW-1
Halogen-free No
Hazardous Goods No
Insulation Class E (VDE 0530)
Minimum Shrink Temperature - °C +100 °C
Nato number 5970-12-402-0784
Operating Temperature -55 °C to +125 °C
ROHS compliant Yes
Self extinguishing Yes
Specifications
Specifications ANSI/UL 224, csa-C22.1, csa-C22.2 No.198.1
Tensile Strength 17MPa
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL OCD link Link Link
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL-File Number E143529
Volume Resistance 10¹⁴ Ω cm
Water Absorption 0.15%
Country of Origin CN
Customs Number 39173200
GTIN-13 / EAN 4031026134307
Packaging 1 - Height (m) 0.18m
Packaging 1 - Length (m) 0.165m
Packaging 1 - Qty 1
Packaging 1 - Type Carton
Packaging 1 - Volume (m³) 0.00163
Packaging 1 - Weight (kg) 0.459kg
Packaging 1 - Width (m) 0.055m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Qty 5
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Weight (kg) 2.795kg
Packaging 2 - Width (m) 0.267m
Packaging 3 - Height (m) 0.4m
Packaging 3 - Length (m) 0.56m
Packaging 3 - Qty 40
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.084
Packaging 3 - Weight (kg) 22.86kg
Packaging 3 - Width (m) 0.375m
Packaging 4 - Height (m) 0.95m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 320
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.912
Packaging 4 - Weight (kg) 203.88kg
Packaging 4 - Width (m) 0.8m
Reel Length 5.0m
Reel Length (imperial) 16.4ft
ETIM 7.0 Key EC000217
ETIM 8.0 Key EC000217
ETIM 9.0 Key EC000217
UNSPSC Key 39121723
