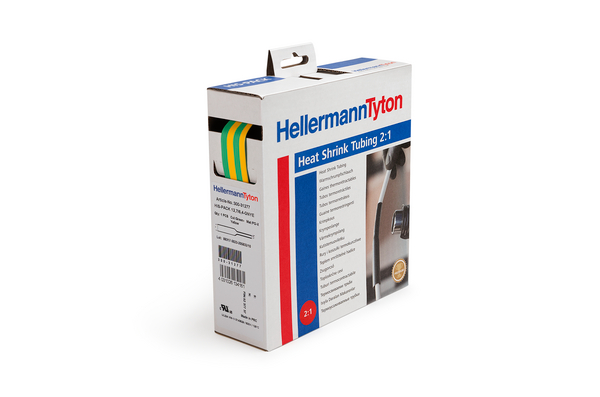

Heat Shrinkable Tubing 2:1 on a Reel 6,4/3,2 green/yellow
Art.-No. 300-30647
| HIS-PACK-6.4/3.2-PO-X-GNYE
|
Copied
- Cross-linked Polyolefin, thin-wall and flexible
- Handy dispenser box including table showing application size range
- Available in black, red, blue, transparent and yellow/green
- 10 sizes from 1.2 mm to 25.4 mm
- Transparent color is halogen free
Request your individual offer now
Request quote
More products in this product group:
| Application | HIS-PACK is used in general purpose of electrical insulation with a high level of protection against corrosion and mechanical abrasion. |
| Behaviour at Heat Shock | not dripping |
| Colour | Green-Yellow (GNYE) |
| Heat Aging Test | 168h/175°C |
| Heat Shock Test | 4h/250°C |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | HIS-PACK-6.4/3.2-PO-X-GNYE |
| Package Content | 5m |
| Package Content packed in | Pack |
| Printable | No |
| Product Family | HIS-PACK |
| Product Group | Heat Shrinkable Tubing 2:1 on a Reel |
| Short Description | Heat Shrinkable Tubing 2:1 on a Reel 6,4/3,2 green/yellow |
| Shrink Ratio | 2:1 |
| Size (imperial) | 1/4" |
| Type | HIS-PACK-6.4/3.2 |
| Variant | Thin-Wall |
| Weight/Unit | 0.164kg |
| With inner glue (Yes/No) | No |
Download
| Dielectric Strength | 20kV/mm |
| Dielectric Strength test method | IEC 243 |
| ELV compliant Dir. Art. 4 (2) | YES |
| Elongation at break (min.) | 800% |
| Elongation at break test method | IEC 684 P2 |
| Flammability | UL 224 VW-1 |
| Halogen-free | No |
| Hazardous Goods | No |
| Insulation Class | E (VDE 0530) |
| Minimum Shrink Temperature | +100 °C |
| Operating Temperature | -55 °C to +125 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Specifications |
|
| Specifications | ANSI/UL 224, CSA -C22.1, CSA -C22.2 No.198.1 |
| Tensile Strength | 17MPa |
| UL File link | Link Link |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US) | Yes |
| UL-File Number | E143529 |
| Volume Resistance | 10¹⁴ Ω cm |
| Water Absorption | 0.15% |
| Country of Origin | CN |
| Customs Number | 39173200 |
| GTIN-13 / EAN | 4031026133928 |
| Packaging 1 - Height (m) | 0.18m |
| Packaging 1 - Length (m) | 0.165m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | Carton |
| Packaging 1 - Volume (m³) | 0.0016335m³ |
| Packaging 1 - Weight (kg) | 0.237kg |
| Packaging 1 - Width (m) | 0.055m |
| Packaging 3 - Height (m) | 0.4m |
| Packaging 3 - Length (m) | 0.56m |
| Packaging 3 - Qty | 40 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.084m³ |
| Packaging 3 - Weight (kg) | 9.98kg |
| Packaging 3 - Width (m) | 0.375m |
| Packaging 4 - Height (m) | 0.95m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 320 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.912m³ |
| Packaging 4 - Weight (kg) | 100.84kg |
| Packaging 4 - Width (m) | 0.8m |
| Reel Length | 5.0m |
| Reel Length (imperial) | 16.4ft |
