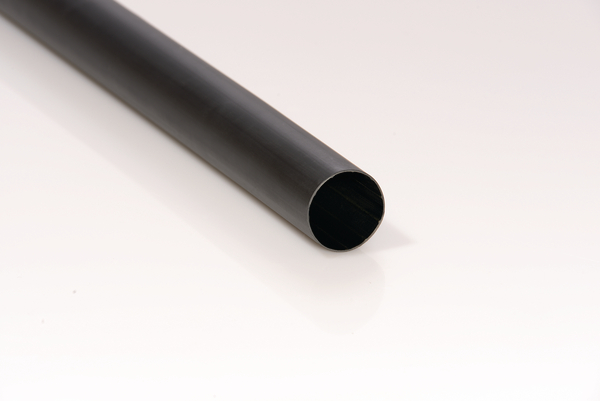

Heat Shrinkable Tubing 4:1 Medium Wall Adhesive Lined length 1m 8/2 black GL-Specification
Art.-No. 323-00100 | MA40-8/2-PO-X-BK Details

  • Medium wall adhesive lined shrink tubing for low voltage power cables
  • Designed for shipbuilding, Germanische Lloyd approved
  • Flame retardant
  • UV and weather resistant
  • Excellent mechanical performance
Show more

Request your individual offer now

Application Designed for low voltage cable joints and terminations in shipbuilding. Insulates and protects against moisture.
Application Tool H6100, CHG900
Colour Black (BK)
Elongation At Heat Aging 300%
Heat Aging Test 168h/150°C
Heat Aging test method ASTM D2671
Material Polyolefin, cross-linked (PO-X)
Minimum Tensile Strength At Heat Aging 12MPa
Pack Cont. 10pcs.
Package Content packed in Lengths
PART DESCRIPTION MA40-8/2-PO-X-BK
Printable No
Product Family MA40 - medium wall adhesive lined
Product Group Heat shrinkable tubing 4:1 - Flame retardant
Short Description Heat Shrinkable Tubing 4:1 Medium Wall Adhesive Lined length 1m 8/2 black GL-Specification
Shrink Ratio up to 4:1
Variant Medium-Wall
With inner glue (Yes/No) Yes
Length (L) 1.0m
Longitudinal Change After Shrinkage -10% max.
Recov. ∅ d 2.0mm
Supplied ∅ D 8.0mm
Wall (WT) 1.7mm
Weight/Unit 0.037kg
Adhesive Hot melt adhesive
Dielectric Strength 15kV/mm
Dielectric Strength test method IEC 60243-1
Elongation at break 350
Elongation at break test method ASTM D2671
ELV compliant Dir. Art. 4 (2) YES
Halogen-free No
Hazardous Goods No
Limited Fire Hazard Yes
Minimum Shrink Temperature - °C +120 °C
Operating Temperature -55 °C to +110 °C
Self extinguishing Yes
Softening Point Adhesive +85 °C
Specifications
Tensile Strength 12MPa
Tensile Strength test method ASTM D2671
Test Method Tensile Strength ASTM D2671
UL Recognized (US and Canada) No
Volume Resistance 10¹² Ω cm
Water Absorption 0.2%
Country of Origin CN
Customs Number 39173200
GTIN-13 / EAN 4031026461168
Packaging 1 - Height (m) 0.1m
Packaging 1 - Length (m) 1.22m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0183
Packaging 1 - Weight (kg) 0.370001kg
Packaging 1 - Width (m) 0.15m
Packaging 3 - Height (m) 0.26m
Packaging 3 - Length (m) 1.08m
Packaging 3 - Qty 450
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0786
Packaging 3 - Weight (kg) 17.15kg
Packaging 3 - Width (m) 0.28m
Packaging 4 - Height (m) 0.68m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 1800
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.653
Packaging 4 - Weight (kg) 89.6kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000217
ETIM 8.0 Key EC000217
ETIM 9.0 Key EC000217
UNSPSC Key 39121723
