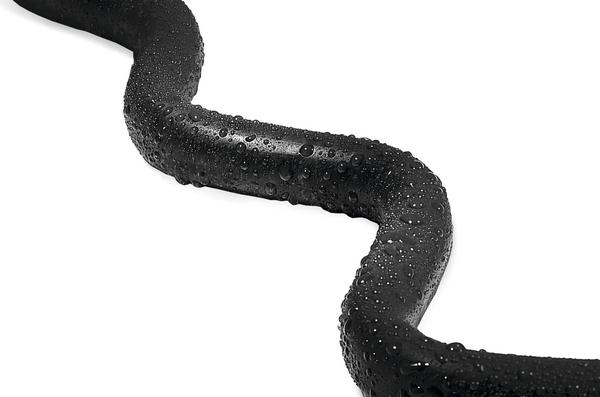

Heat Shrinkable Tubing 3:1 Thin Wall (6/2) schwarz
Art.-No. 343-06020 | PTA300 6/2-PO-X-BK Details

  • Flexible and thin walled heat shrink tubing with a co-extruded hot melt adhesive inner wall
  • Adhesive flows well to provide an environmental sealing of complex parts and protect against moisture

Request your individual offer now

Application EPS seals and protect a wide variety of electrical applications like back end connector sealing, connector-to-cable transitions and splices.
Colour Black (BK)
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION PTA300 6/2-PO-X-BK
Pack Cont. 300m
Package Content packed in metre
Printable No
Short Description Heat Shrinkable Tubing 3:1 Thin Wall (6/2) schwarz
Shrink Ratio 3:1
Type PTA300 6/2
Variant Thin-Wall
With inner glue (Yes/No) Yes
Longitudinal Change After Shrinkage -10% max.

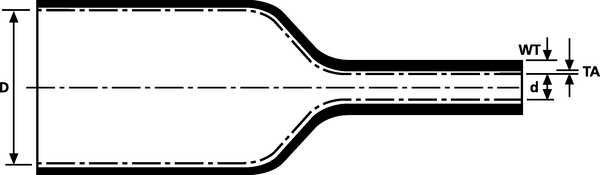

Recov. ∅ d 2.0mm
Supplied ∅ D 6.0mm
Thickness of Adhesive (TA) nom. 0.50mm
Wall (WT) 1.00mm
Weight/Unit 0.0104kg
Dielectric Strength 15kV/mm
Dielectric Strength test method IEC 684 P2
ELV compliant Dir. Art. 4 (2) YES
Flammability ASTM D2671 (outer layer only)
Hazardous Goods No
Minimum Shrink Temperature +120 °C
Operating Temperature -55 °C to +110 °C, (outer wall only)
ROHS compliant Yes
Softening Point Adhesive +90 °C
Specifications
Country of Origin DE
Customs Number 39173200
GTIN-13 / EAN 4031026150789
Packaging 1 - Height (m) 0.26m
Packaging 1 - Length (m) 0.39m
Packaging 1 - Qty 300
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.03955
Packaging 1 - Weight (kg) 3.12kg
Packaging 1 - Width (m) 0.39m
Packaging 3 - Height (m) 0.56m
Packaging 3 - Length (m) 0.4m
Packaging 3 - Qty 600
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0896
Packaging 3 - Weight (kg) 6.74kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 0.705m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 3600
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.677
Packaging 4 - Weight (kg) 61.44kg
Packaging 4 - Width (m) 0.8m
Reel Length 300.0m
ETIM 7.0 Key EC000217
ETIM 8.0 Key EC000217
ETIM 9.0 Key EC000217
UNSPSC Key 39121723
