Heat shrinkable tubing 4:1 (18,3/4,35 mm), adhesive lined, oil resistance, transparent, 1,2 m
Art.-No. 301-10003 | SA47 18.3/4.35-PO-X-BK/CL Details

  • Flexible, standard wall polyolefin heat shrink tubing
  • Excellent tensile strength and strain relief
  • Provides excellent moisture protection
  • Tubing is clear and hot melt adhesive black
  • Provides an environmental sealing of complex parts
  • Halogen free
Show more

Request your individual offer now

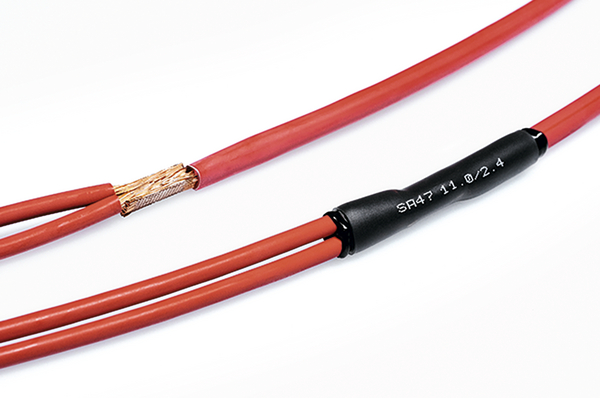

Application SA47 is a semi-rigid halogen free polyolefin tubing with a thick inner liner of hot melt adhesive. It has excellent tensile strength and strain relief. The adhesive liner provides excellent moisture protection. Ideal for electrical connections and splices in automobiles. Tubing is transparent and hot melt adhesive is black.
Application Tool H6100
Behaviour at Heat Shock not cracking
Colour Transparent (CL), Black (BK)
Heat Shock Test 4h/225°C
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION SA47 18.3/4.35-PO-X-BK/CL
Pack Cont. 1.2m
Package Content packed in pcs.
Printable No
Product Family SA47 - standard wall adhesive lined
Product Group Heat shrinkable tubing 4:1 - 1.2 m lengths
Short Description Heat shrinkable tubing 4:1 (18,3/4,35 mm), adhesive lined, oil resistance, transparent, 1,2 m
Shrink Ratio 4:1
Type SA47 18.3/4.35
Variant Standard-Wall
With inner glue (Yes/No) Yes
Length (L) 1.2m
Longitudinal Change After Shrinkage -10% max.
Recov. ∅ d 4.35mm
Supplied ∅ D 18.30mm
Wall (WT) 2.20mm
Weight/Unit 0.0584kg
Adhesive Hot melt adhesive
CAS Number 119-47-1
Critical Substance BisphenolC23H32O2, 1-5 %
Dielectric Strength 20kV/mm
Dielectric Strength test method ASTM D149
EC Number 204-327-1
ELV compliant Dir. Art. 4 (2) YES
Elongation at break 450%
Elongation at break test method ASTM D2671
Halogen-free Yes
Hazardous Goods No
Melting Point starting from +110 °C
Minimum Shrink Temperature - °C +130 °C
Operating Temperature -40 °C to +125 °C
ROHS compliant Yes
Specifications
Tensile Strength 14MPa
Tensile Strength test method ASTM D2671
Test Method Tensile Strength ASTM D2671
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
Volume Resistance 10¹³ Ω cm
Water Absorption 0.5%
Country of Origin JP
Customs Number 39173200
GTIN-13 / EAN 4031026482125
Packaging 1 - Height (m) 0.075m
Packaging 1 - Length (m) 1.2m
Packaging 1 - Qty 15
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.009
Packaging 1 - Weight (kg) 0.876001kg
Packaging 1 - Width (m) 0.1m
Packaging 3 - Height (m) 0.26m
Packaging 3 - Length (m) 1.27m
Packaging 3 - Qty 75
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0859
Packaging 3 - Weight (kg) 4.88kg
Packaging 3 - Width (m) 0.26m
Packaging 4 - Height (m) 10.2m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 900
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 9.792
Packaging 4 - Weight (kg) 79.56kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000217
ETIM 8.0 Key EC000217
ETIM 9.0 Key EC000217
UNSPSC Key 39121723
