Heat Shrinkable Tubing 3:1 with adhesive liner Kit black
Art.-No. 380-03004
| ShrinKit 321-A Basic-PO-X-BK/CL
|
Copied

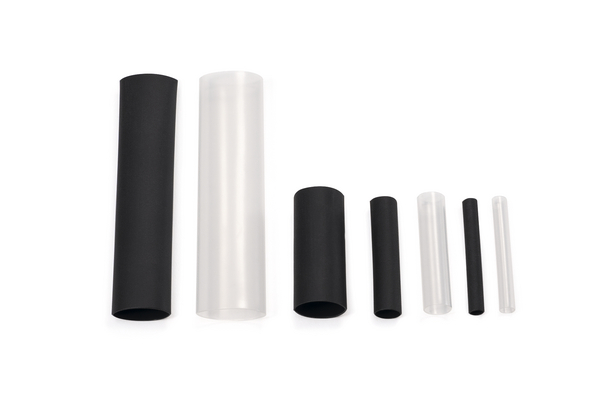

- Adhesive lined heat shrink tubing in black and transparent

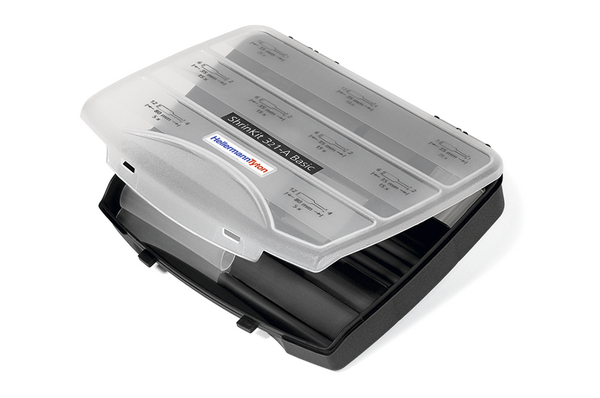

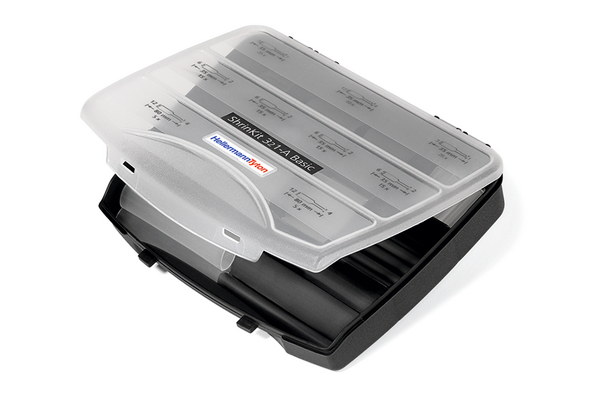

- Attractive and reusable kit ideal for assembling and identification
- Inner wall melts when heated and is forced into gaps
- Adhesive forms seal against moisture as tubing cools
- Black tubes mainly for the protection of connectors and splices
- Transparent tubing ideal for protection of printed label markers

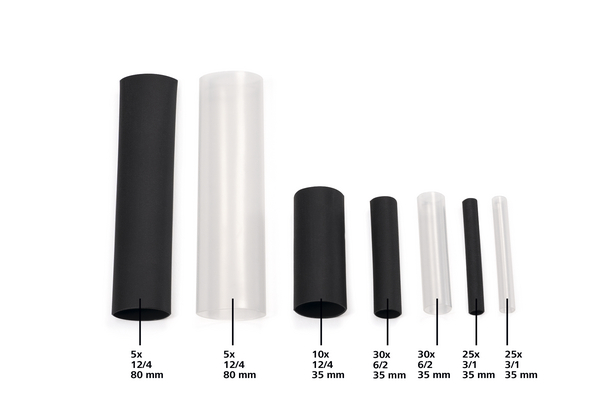

- 130 precut pieces in 3 sizes
- Case can be re-used for storing nails, screws, nuts, fish hooks, etc.

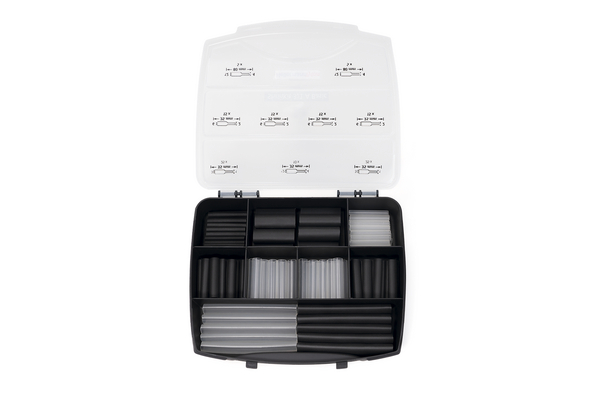

- Size changeable by simply moving yellow space dividers
Request your individual offer now
Request quote
More products in this product group:
| Application | ShrinKit 321-A tubing seals against moisture and dust and with the ideal shrink ratio of 3:1 protects a wide variety of electrical applications.The black tubing is mainly used for environmental sealing of splices and connectors. The transparent tubing is typically used for protection of cable markers. |
| Application Method | Use hot air tool |
| Colour | Black (BK), Transparent (CL) |
| Content | This kit contains a range of general purpose tubing lengths clearly sorted. Three different sizes are included in black and transparent. |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | ShrinKit 321-A Basic-PO-X-BK/CL |
| Package Content | 1Set |
| Package Content packed in | kit |
| Printable | No |
| Product Family | ShrinKit 321-A Basic - with adhesive liner |
| Product Group | Heat shrinkable tubing 3:1 in a kit |
| Short Description | Heat Shrinkable Tubing 3:1 with adhesive liner Kit black |
| Shrink Ratio | 3:1 |
| Type | ShrinKit 321-A Basic |
| Variant | Thin-Wall |
| Weight/Unit | 0.244kg |
| With inner glue (Yes/No) | Yes |
Download
| Adhesive | Hot melt adhesive |
| Dielectric Strength | 15kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| ELV compliant Dir. Art. 4 (2) | YES |
| Hazardous Goods | No |
| Insulation Class | A (VDE 0530) |
| Minimum Shrink Temperature | +110 °C |
| Operating Temperature | -55 °C to +110 °C |
| ROHS compliant | Yes |
| Self extinguishing | No |
| Softening Point Adhesive | +120 °C |
| Specifications |
|
| UL Listed (US) | No |
| UL Recognized (US) | No |
|
|
|
| Country of Origin | PL |
| Customs Number | 39173200 |
| GTIN-13 / EAN | 4031026300283 |
| Packaging 1 - Height (m) | 0.04m |
| Packaging 1 - Length (m) | 0.177m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | Pack |
| Packaging 1 - Volume (m³) | 0.00133812m³ |
| Packaging 1 - Weight (kg) | 0.244kg |
| Packaging 1 - Width (m) | 0.189m |
| Packaging 3 - Height (m) | 0.175m |
| Packaging 3 - Length (m) | 0.6m |
| Packaging 3 - Qty | 22 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0446m³ |
| Packaging 3 - Weight (kg) | 5.868kg |
| Packaging 3 - Width (m) | 0.425m |
| Packaging 4 - Height (m) | 1.02m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 440 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.979m³ |
| Packaging 4 - Weight (kg) | 138.36kg |
| Packaging 4 - Width (m) | 0.8m |
