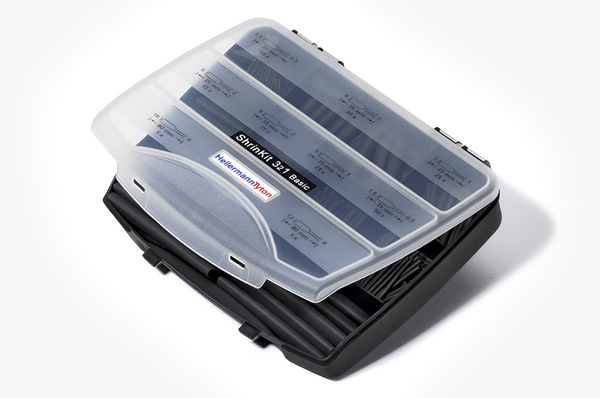

Heat Shrinkable Tubing 3:1 Kit black
Art.-No. 380-03001 | ShrinKit 321 Basic-PO-X-BK Details

  • Compact and handy kit
  • Black tubing
  • Available in a wide size range of 1.5 mm to 18.0 mm

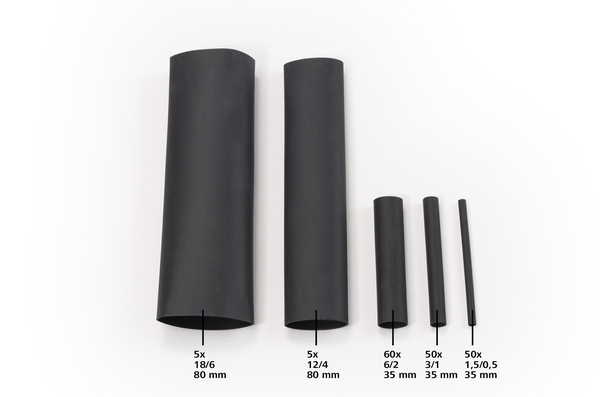

  • 220 precut pieces in five sizes

Request your individual offer now

Application The compact and handy kit belongs to the basic equipment for every assembler. Its ideal shrink ratio of 3:1 replaces many differently sized tubing.
Application Method Use hot air tool
Application Tool H6100
Colour Black (BK)

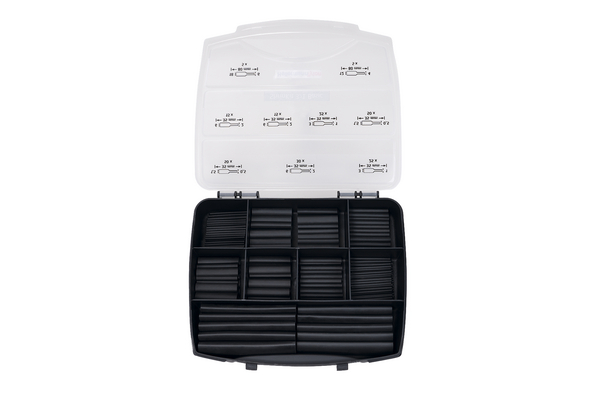

Content This kit contains a selection of widely used black tubing in seven sizes and different lengths.
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION ShrinKit 321 Basic-PO-X-BK
Pack Cont. 1Set
Package Content packed in kit
Printable No
Product Family ShrinKit 321 Basic - 220 pcs. - black
Product Group Heat shrinkable tubing 3:1 in a kit
Short Description Heat Shrinkable Tubing 3:1 Kit black
Shrink Ratio 3:1
Type ShrinKit 321 Basic
Variant Thin-Wall
With inner glue (Yes/No) No
Longitudinal Change After Shrinkage +5%/-10% max.
Weight/Unit 0.175kg
CE Certification No
CSA Certified No
Dielectric Strength 20kV/mm
Dielectric Strength test method ASTM D2671
ELV compliant Dir. Art. 4 (2) YES
Elongation at break 600%
Halogen-free No
Hazardous Goods No
Insulation Class B (VDE 0530)
Minimum Shrink Temperature - °C +90 °C
Nato number 5970-12-401-6989
Operating Temperature -55 °C to +135 °C
ROHS compliant Yes
Self extinguishing Yes
Specifications
Tensile Strength 14MPa
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
Country of Origin PL
Customs Number 39173200
GTIN-13 / EAN 4031026270692
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.192m
Packaging 1 - Qty 1
Packaging 1 - Type Pack
Packaging 1 - Volume (m³) 0.00128
Packaging 1 - Weight (kg) 0.217kg
Packaging 1 - Width (m) 0.19m
Packaging 3 - Height (m) 0.175m
Packaging 3 - Length (m) 0.42m
Packaging 3 - Qty 22
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0294
Packaging 3 - Weight (kg) 5.274kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.194m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 528
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.146
Packaging 4 - Weight (kg) 147.576kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC001049
ETIM 8.0 Key EC001049
ETIM 9.0 Key EC001049
UNSPSC Key 39121723
