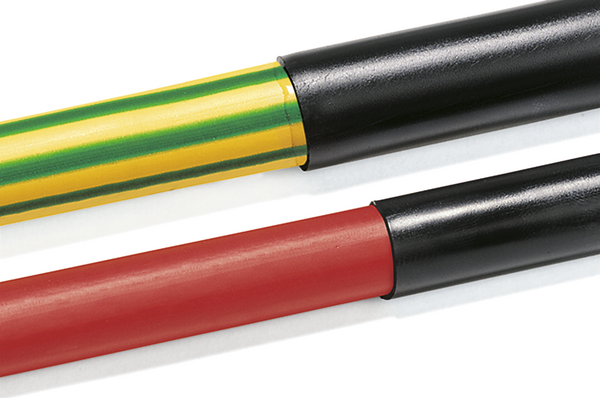

Heat Shrinkable Tubing Thin Wall with Adhesive Liner 4:1 L=1,2m 24/6 black
Art.-No. 318-42400 | TA42-24/6-PO-X-BK Details

  • Thin wall adhesive-lined heat shrink tubing
  • Highly flame retardant
  • Outer wall conforms to UL224
  • High shrink ratio

Request your individual offer now

Application The high expansion ratio makes it possible to repair most damaged cable jackets without removing connectors.
Application Tool H6100
Behaviour at Heat Shock not cracking, not dripping, not fluid
Colour Black (BK)
Heat Shock Test 4h/250°C
Material Polyolefin, cross-linked (PO-X)
Pack Cont. 75pcs.
Package Content packed in pcs.
PART DESCRIPTION TA42-24/6-PO-X-BK
Printable No
Product Family TA42 - thin wall, 4:1 shrink ratio
Product Group Heat shrinkable tubing adhesive lined - 1.2 m lengths
Short Description Heat Shrinkable Tubing Thin Wall with Adhesive Liner 4:1 L=1,2m 24/6 black
Shrink Ratio 4:1
Variant Thin-Wall
With inner glue (Yes/No) Yes
Length (L) 1.2m
Recov. ∅ d 6.0mm
Supplied ∅ D 24.0mm
Wall (WT) 2.20mm
Weight/Unit 0.077244kg
Adhesive Hot melt adhesive
Dielectric Strength 20kV/mm
Dielectric Strength test method ASTM D876
Elongation at break 350%
Elongation at break test method ASTM D638
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 224 VW-1
Hazardous Goods No
Minimum Shrink Temperature - °C +110 °C
Operating Temperature -55 °C to +125 °C
Softening Point Adhesive +110 °C
Specifications
Specifications ANSI/UL 224
Tensile Strength 15MPa
Tensile Strength test method ASTM D876
Test Method Tensile Strength ASTM D638
UL OCD link Link
UL-File Number E198023
Volume Resistance 10¹⁴ Ω cm
Water Absorption 0.5%
Country of Origin JP
Customs Number 39173200
GTIN-13 / EAN 4031026225012
Packaging 3 - Height (m) 0.26m
Packaging 3 - Length (m) 1.28m
Packaging 3 - Qty 75
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0865
Packaging 3 - Weight (kg) 6.293kg
Packaging 3 - Width (m) 0.26m
Packaging 4 - Height (m) 0.964m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 600
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.925
Packaging 4 - Weight (kg) 103.226kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000217
ETIM 8.0 Key EC000217
ETIM 9.0 Key EC000217
UNSPSC Key 39121723
