05/12/2024

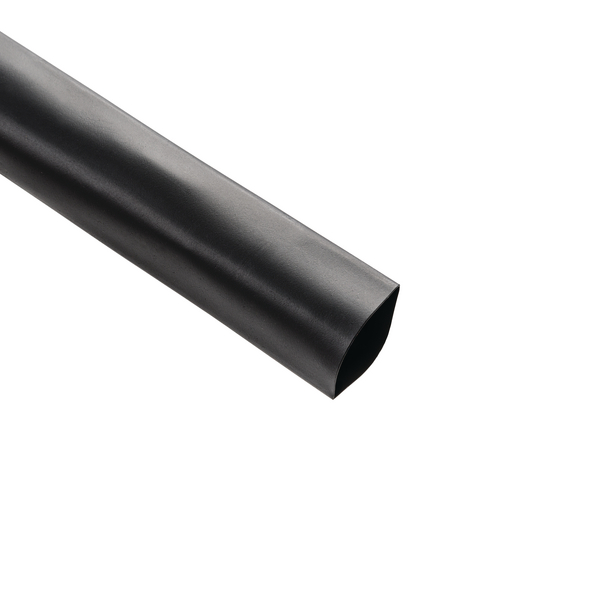

Heat shrinkable tubing 2:1 (6.4/3.2 mm), self extinguishing, black, 300 m reel
Art.-No. 300-73060 | TCN20-6.4/3.2-PO-X-BK Details

  • Thin wall general purpose polyolefin tubing
  • Self extinguishing, UL224 VW-1, CSA
  • Fast shrinking
  • Low shrink temperature

Request your individual offer now

Application TCN20 is suitable for a wide range of applications such as electrical insulation, mechanical protection and cable bundling.
Colour Black (BK)
Elongation At Heat Aging 350%
Heat Aging Test 168h/160°C
Material Polyolefin, cross-linked (PO-X)
Minimum Tensile Strength At Heat Aging 14MPa
PART DESCRIPTION TCN20-6.4/3.2-PO-X-BK
Pack Cont. 300m
Package Content packed in Reel
Printable No
Product Family TCN20 - self extinguishing
Product Group Low-Heat Shrinkable Tubing 2:1
Short Description Heat shrinkable tubing 2:1 (6.4/3.2 mm), self extinguishing, black, 300 m reel
Shrink Ratio 2:1
Size (imperial) 1/4"
Type TCN20-6.4/3.2
Variant Thin-Wall
With inner glue (Yes/No) No
Length (L) 300m
Longitudinal Change After Shrinkage +/-5%
Nominal ∅ 6.4mm
Nominal ∅ (imperial) 0.25"
Recov. ∅ d 3.2mm
Recov. ∅ d max. (imperial) 0.12"
Supplied ∅ D 6.4mm
Supplied ∅ D min. (imperial) 0.25"
Tube Shape Flat
Wall (WT) 0.54mm
Wall (WT) (imperial) .021"
Weight/Unit 0.012kg
CSA Certified No
Dielectric Strength 20kV/mm
ELV compliant Dir. Art. 4 (2) YES
Elongation at break 400%
Flammability UL 224 VW-1
Halogen-free No
Hazardous Goods No
Insulation Class E (VDE 0530)
Minimum Shrink Temperature +100 °C
Operating Temperature -55 °C to +125 °C
ROHS compliant Yes
Self extinguishing Yes
Specifications ANSI/UL 224, CSA, DIN 75200 (09/1980)
Specifications
Tensile Strength 14MPa
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL OCD link Link Link
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL-File Number E143529
Volume Resistance 10¹⁴ Ω cm
Country of Origin CN
Customs Number 39173200
GTIN-13 / EAN 4031026282763
Packaging 1 - Height (m) 0.25m
Packaging 1 - Length (m) 0.385m
Packaging 1 - Qty 300
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.03706
Packaging 1 - Weight (kg) 3.67kg
Packaging 1 - Width (m) 0.385m
Packaging 3 - Height (m) 0.42m
Packaging 3 - Length (m) 0.405m
Packaging 3 - Qty 600
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0689
Packaging 3 - Weight (kg) 7.84kg
Packaging 3 - Width (m) 0.405m
Packaging 4 - Height (m) 0.954m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 2400
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.916
Packaging 4 - Weight (kg) 52.36kg
Packaging 4 - Width (m) 0.8m
Reel Length 300.0m
Reel Length (imperial) 984.3ft
ETIM 7.0 Key EC000217
ETIM 8.0 Key EC000217
ETIM 9.0 Key EC000217
UNSPSC Key 39121723
