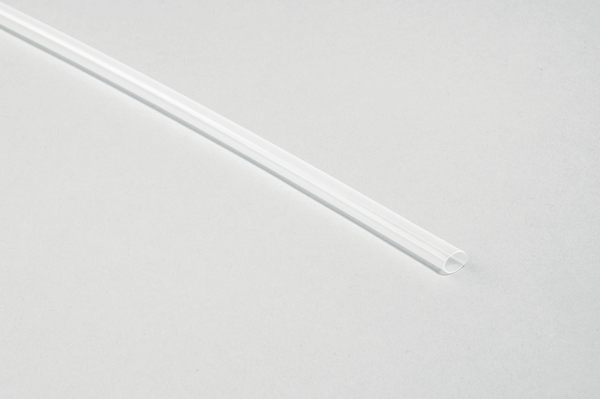

Heat Shrinkable Tubing 2:1 PTFE transparent in a length of 1.22m 4.85/2.85
Art.-No. 336-00489 | TFE2-10-PTFE-CL Details

  • PTFE heat shrink tubing
  • Very high temperature resistance
  • Extra thin wall translucent tubing
  • High abrasion resistance and good resistance against aggressive chemicals
  • Available in either 2:1 (TFE2) or 4:1 (TFE4) shrink ratios
Show more

Request your individual offer now

Application TFE is ideal for high temperature applications, when resistance to aggressive fluids is required or a very thin walled tubing is needed, for example in pH-measuring instruments. TFE tubing is also used to reduce movement due to friction, covering cylinders for example.
Application Tool H6100
Colour Transparent (CL)
Local order number TFE2-10
Material Polytetrafluoroethylene (PTFE)
PART DESCRIPTION TFE2-10-PTFE-CL
Pack Cont. 50pcs.
Package Content packed in pcs.
Printable No
Product Family TFE2 2:1
Product Group Heat Shrinkable Tubing - PTFE
Short Description Heat Shrinkable Tubing 2:1 PTFE transparent in a length of 1.22m 4.85/2.85
Shrink Ratio 2:1
Size 10
Type TFE2-10
Variant Thin-Wall
With inner glue (Yes/No) No
Length (L) 1.22m
Longitudinal Change After Shrinkage -20% max.
Recov. ∅ d 2.85mm
Supplied ∅ D 4.85mm
Wall (WT) 0.30mm
Weight/Unit 0.0081kg
Wire Size (AWG) 10
Dielectric Strength 40kV/mm
Dielectric Strength test method DIN 53481
ELV compliant Dir. Art. 4 (2) YES
Elongation at break 500%
Halogen-free No
Hazardous Goods No
Limited Fire Hazard No
Minimum Shrink Temperature - °C +330 °C
Nato number 5970-99-647-4284, 5970-99-648-3260
Operating Temperature -65 °C to +260 °C
ROHS compliant Yes
Specifications
UL Recognized (US and Canada) No
Volume Resistance 10¹⁸ Ω cm
Volume Resistance test method DIN IEC 93 / DIN IEC 167
Country of Origin DE
Customs Number 39173200
GTIN-13 / EAN 4031026149455
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 1.3m
Packaging 1 - Qty 50
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00429
Packaging 1 - Weight (kg) 0.46kg
Packaging 1 - Width (m) 0.11m
Packaging 4 - Height (m) 0.964m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 1500
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.925
Packaging 4 - Weight (kg) 66.68kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000217
ETIM 8.0 Key EC000217
ETIM 9.0 Key EC000217
UNSPSC Key 39121723
