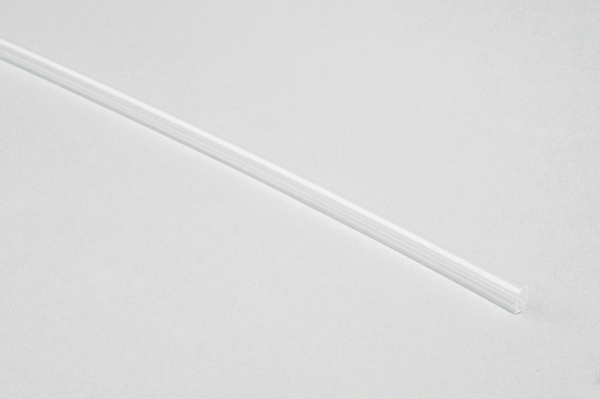

Heat Shrinkable Tubing 2:1 PTFE transparent in a length of 1.22m 3.05/1.83
Art.-No. 336-00319 | TFE2-14-PTFE-CL Details

  • PTFE heat shrink tubing
  • Very high temperature resistance
  • Extra thin wall translucent tubing
  • High abrasion resistance and good resistance against aggressive chemicals
  • Available in either 2:1 (TFE2) or 4:1 (TFE4) shrink ratios
Show more

Request your individual offer now

Application TFE is ideal for high temperature applications, when resistance to aggressive fluids is required or a very thin walled tubing is needed, for example in pH-measuring instruments. TFE tubing is also used to reduce movement due to friction, covering cylinders for example.
Application Tool H6100
Colour Transparent (CL)
Material Polytetrafluoroethylene (PTFE)
Pack Cont. 50pcs.
Package Content packed in pcs.
PART DESCRIPTION TFE2-14-PTFE-CL
Printable No
Product Family TFE2 2:1
Product Group Heat Shrinkable Tubing - PTFE
Short Description Heat Shrinkable Tubing 2:1 PTFE transparent in a length of 1.22m 3.05/1.83
Shrink Ratio 2:1
Size 14
Variant Thin-Wall
With inner glue (Yes/No) No
Length (L) 1.22m
Longitudinal Change After Shrinkage -20% max.
Recov. ∅ d 1.83mm
Supplied ∅ D 3.05mm
Wall (WT) 0.30mm
Weight/Unit 0.002kg
Wire Size (AWG) 14
Dielectric Strength 40kV/mm
Dielectric Strength test method DIN 53481
Elongation at break 500%
ELV compliant Dir. Art. 4 (2) YES
Halogen-free No
Hazardous Goods No
Limited Fire Hazard No
Minimum Shrink Temperature - °C +330 °C
Nato number 5970-99-651-6488
Operating Temperature -65 °C to +260 °C
Specifications
Tensile Strength test method DIN IEC 93 / DIN IEC 167
UL Recognized (US and Canada) No
Volume Resistance 10¹⁸ Ω cm
Country of Origin DE
Customs Number 39173200
GTIN-13 / EAN 4031026149417
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 1.3m
Packaging 1 - Qty 50
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00286
Packaging 1 - Weight (kg) 0.1003kg
Packaging 1 - Width (m) 0.11m
Packaging 4 - Height (m) 0.964m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 2500
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.925
Packaging 4 - Weight (kg) 57.88kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000217
ETIM 8.0 Key EC000217
ETIM 9.0 Key EC000217
UNSPSC Key 39121723
