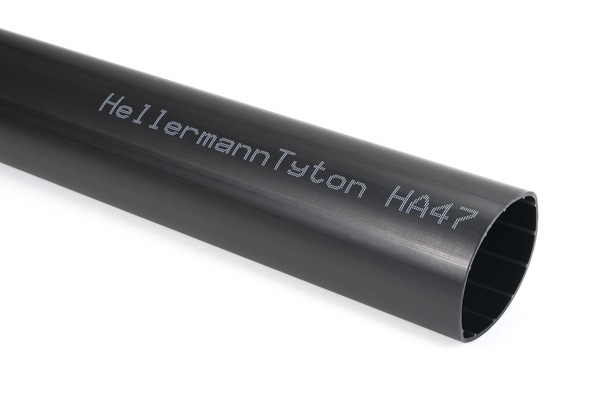

Heat Shrinkable Tubing 3.5:1 Thick Wall Adhesive Lined length 1m 51/16 black
Art.-No. 321-50510 | TREDUX-HA47-51/16-PO-X-BK Details

  • Thick wall polyolefin adhesive-lined tubing
  • 1 m shrink tubing lengths delivered in handy display carton
  • All tubes can be sold in single 1 meter lengths or entire box

Request your individual offer now

Application The toughness and weatherability make TREDUX thick wall tubing suitable for exposed applications and underground cable joints.
Colour Black (BK)
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION TREDUX-HA47-51/16-PO-X-BK
Pack Cont. 2pcs.
Package Content packed in pcs.
Printable No
Product Family TREDUX HA47 thick wall - with adhesive liner
Product Group Heat Shrinkable Tubing up to 3,5:1 - 1 m lengths
Short Description Heat Shrinkable Tubing 3.5:1 Thick Wall Adhesive Lined length 1m 51/16 black
Shrink Ratio up to 4:1
Type TREDUX-HA47-51/16
Variant Thick-Wall
Voltage range Low and Medium Voltage
With inner glue (Yes/No) Yes
Length (L) 1.0m
Longitudinal Change After Shrinkage -10% max.
Nominal ∅ 51mm
Nominal ∅ (imperial) 2"

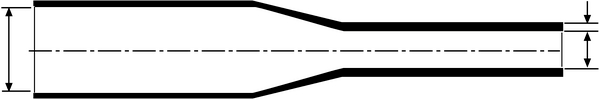

Recov. ∅ d 16.0mm
Recov. ∅ d max. (imperial) 0.629"
Supplied ∅ D 51.0mm
Supplied ∅ D min. (imperial) 2.0"
Wall (WT) 4.1mm
Wall (WT) (imperial) .16"
Weight/Unit 0.25kg
Wire Size Range (mm²) 23.0-44.0mm²
Adhesive Hot melt adhesive
Dielectric Strength 20kV/mm
ELV compliant Dir. Art. 4 (2) YES
Elongation at break 400%(ASTM D 2671)
Halogen-free Yes
Hazardous Goods No
Minimum Shrink Temperature +120 °C
Operating Temperature -55 °C to +110 °C
ROHS compliant Yes
Softening Point Adhesive +85 °C
Specifications
Tensile Strength 14MPa
UL Listed (US and Canada) No
UL Recognized (US) No
Volume Resistance 10¹⁴ Ω cm
Country of Origin CN
Customs Number 39173200
GTIN-13 / EAN 4031026239897
Packaging 1 - Height (m) 0.095m
Packaging 1 - Length (m) 1.07m
Packaging 1 - Qty 2
Packaging 1 - Type Carton
Packaging 1 - Volume (m³) 0.00966
Packaging 1 - Weight (kg) 1.168kg
Packaging 1 - Width (m) 0.095m
Packaging 3 - Height (m) 0.132m
Packaging 3 - Length (m) 1.081m
Packaging 3 - Qty 4
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.034
Packaging 3 - Weight (kg) 2.976kg
Packaging 3 - Width (m) 0.238m
Packaging 4 - Height (m) 1.2m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 96
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.152
Packaging 4 - Weight (kg) 92.424kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000217
ETIM 8.0 Key EC000217
ETIM 9.0 Key EC000217
UNSPSC Key 39121723
