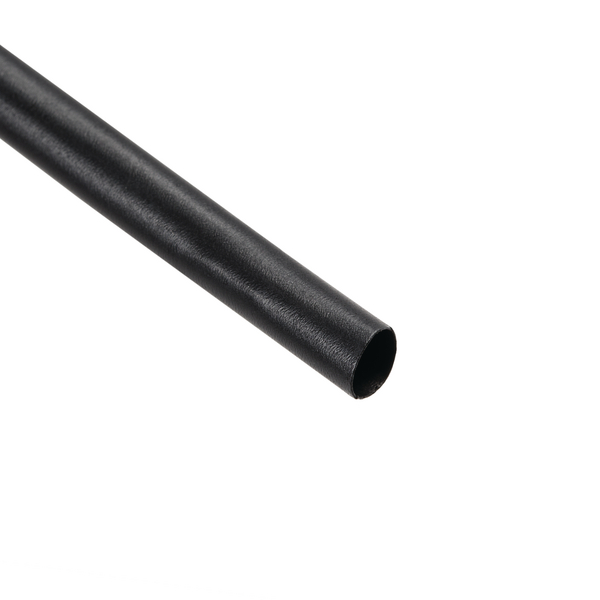

Heat Shrinkable Tubing 4:1 Medium Wall Adhesive Lined length 1m 63/19 black
Art.-No. 323-50630 | TREDUX-MA47-63/19-PO-X-BK Details

  • Medium wall heat shrink tubing
  • Thermoplastic adhesive liner for protection from moisture and weathering
  • 1 m shrink tubing lenghts delivered in handy display carton
  • All tubes can be sold in single 1 meter lengths or entire box

Request your individual offer now

Application Suitable for insulation and protection of low voltage cable joints and terminations.
Application Tool H6100, CHG900
Behaviour At Low Temperature not cracking
Behaviour at Heat Shock not cracking, not fluid, not dripping
Behaviour at low Temperature test method ASTM D2671
Colour Black (BK)
Elongation At Heat Aging 300%
Heat Aging Test 168h/150°C
Heat Aging test method ASTM D2671
Heat Shock Test 4h/225°C
Material Polyolefin, cross-linked (PO-X)
Minimum Tensile Strength At Heat Aging 12MPa
PART DESCRIPTION TREDUX-MA47-63/19-PO-X-BK
Pack Cont. 2pcs.
Package Content packed in pcs.
Printable No
Product Family TREDUX MA47 medium wall - with adhesive liner
Product Group Heat Shrinkable Tubing up to 4:1 - 1 m lengths
Short Description Heat Shrinkable Tubing 4:1 Medium Wall Adhesive Lined length 1m 63/19 black
Shrink Ratio up to 4:1
Type TREDUX-MA47-63/19
Variant Medium-Wall
Voltage range Low and medium voltage
With inner glue (Yes/No) Yes
Length (L) 1.0m
Longitudinal Change After Shrinkage -10% max.
Nominal ∅ 63mm
Nominal ∅ (imperial) 2.5"
Recov. ∅ d 19.0mm
Recov. ∅ d max. (imperial) 0.75"
Supplied ∅ D 63.0mm
Supplied ∅ D min. (imperial) 2.48"
Wall (WT) 2.8mm
Wall (WT) (imperial) .11"
Weight/Unit 0.205kg
Wire Size Range (mm²) 27.8-54.2mm²
Adhesive Hot melt adhesive
Dielectric Strength 15kV/mm
Dielectric Strength test method IEC 60243
ELV compliant Dir. Art. 4 (2) YES
Elongation at break 350
Elongation at break test method ASTM D2671
Halogen-free Yes
Hazardous Goods No
Insulation Class A (VDE 0530)
Minimum Shrink Temperature - °C +120 °C
Operating Temperature -55 °C to +110 °C
ROHS compliant Yes
Softening Point Adhesive +85 °C
Specifications
Tensile Strength 12MPa
Test Method Tensile Strength ASTM D2671
Volume Resistance 10¹² Ω cm
Volume Resistance test method IEC 93
Water Absorption 0.2%
Country of Origin CN
Customs Number 39173200
GTIN-13 / EAN 4031026239811
Packaging 1 - Height (m) 0.094m
Packaging 1 - Length (m) 1.068m
Packaging 1 - Qty 2
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00944
Packaging 1 - Weight (kg) 0.920001kg
Packaging 1 - Width (m) 0.094m
Packaging 3 - Height (m) 0.132m
Packaging 3 - Length (m) 1.081m
Packaging 3 - Qty 4
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.034
Packaging 3 - Weight (kg) 2.480002kg
Packaging 3 - Width (m) 0.238m
Packaging 4 - Height (m) 1.2m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 96
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.152
Packaging 4 - Weight (kg) 80.52kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000217
ETIM 8.0 Key EC000217
ETIM 9.0 Key EC000217
UNSPSC Key 39121723
