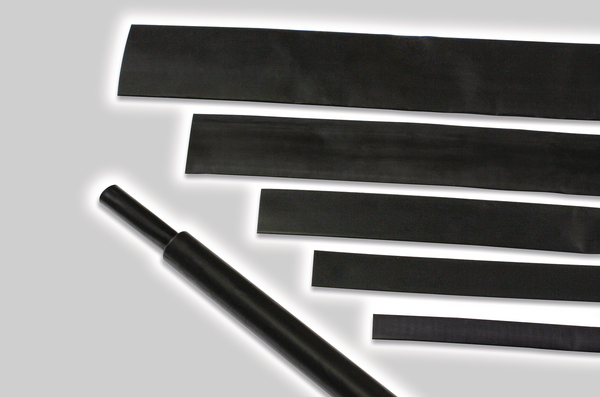

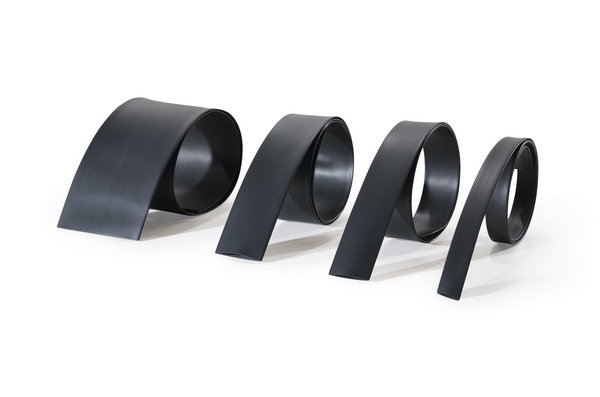

Heat shrinkable tubing 2:1 - self-extinguishing, halogen-free and diesel resistant
Art.-No. 300-06004 | TU28-6.4/3.2-PO-X-BK Details

  • Thin-walled, flexible polyolefin heat shrinkable tubing
  • Halogen-free
  • Self-extinguishing
  • Low smoke index
  • DIN EN 45545-2 (HL3) approved
  • Diesel resistant
Show more

Request your individual offer now

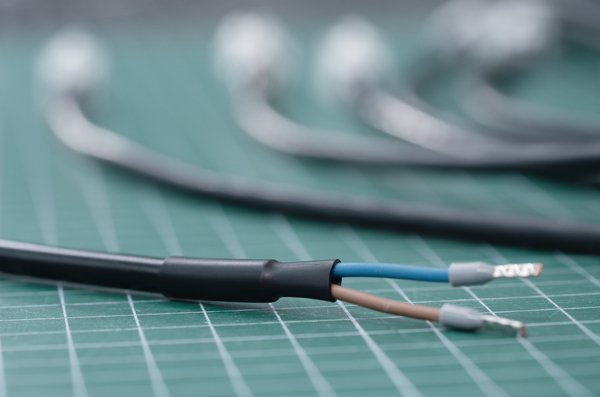

Application The thin-walled heat shrinkable tubing TU28 is halogen-free, self-extinguishing, has a low smoke index and therefore is extremely suitable for installation in public transportation applications such as trains, busses, planes, tunnels and elevators.
Behaviour at Heat Shock not fluid, not dripping, not cracking
Colour Black (BK)
Heat Shock Test 4h/225°C
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION TU28-6.4/3.2-PO-X-BK
Pack Cont. 100m
Package Content packed in Reel
Product Family TU28 - thin-walled
Product Group Heat shrinkable tubing 2:1 - self-extinguishing, halogen-free and diesel resistant
Shrink Ratio 2:1
Type TU28-6.4/3.2
Variant Thin-Wall
With inner glue (Yes/No) No
Longitudinal Change After Shrinkage +/-5%
Recov. ∅ d 3.18mm
Supplied ∅ D 6.92mm
Wall (WT) 0.56mm
Weight/Unit 0.0105kg
Dielectric Strength 19.7kV/mm
ELV compliant Dir. Art. 4 (2) YES
Elongation at break 200%
Halogen-free Yes
Hazardous Goods No
Minimum Shrink Temperature +120 °C
Operating Temperature -55 °C to +125 °C
ROHS compliant Yes
Specifications
Specifications DIN EN 50343:2014 Appendix H, EN 45545-2
Tensile Strength 10.3MPa
Volume Resistance 10¹⁴ Ω cm
Country of Origin CN
Customs Number 39173200
GTIN-13 / EAN 4031026601977
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.4m
Packaging 1 - Qty 100
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.0048
Packaging 1 - Weight (kg) 1.05kg
Packaging 1 - Width (m) 0.4m
Packaging 3 - Height (m) 0.4m
Packaging 3 - Length (m) 0.4m
Packaging 3 - Qty 1000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.064
Packaging 3 - Weight (kg) 11.0kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 0.945m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 12000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.907
Packaging 4 - Weight (kg) 153.0kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000217
ETIM 8.0 Key EC000217
ETIM 9.0 Key EC000217
UNSPSC Key 39121723
