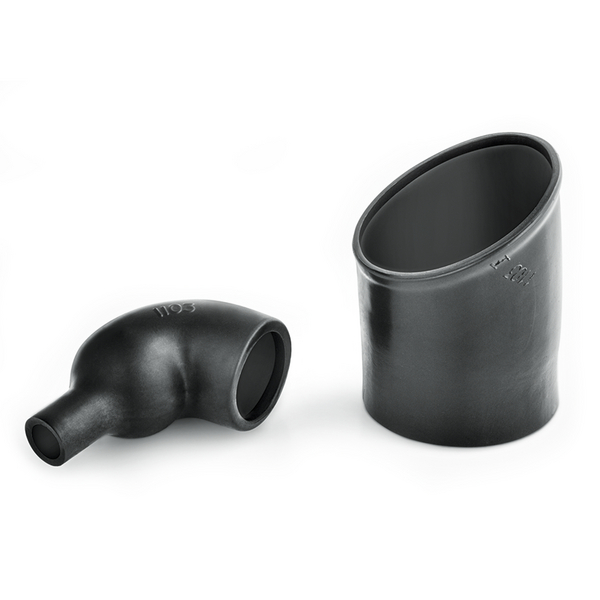

Right-Angle Shapes, MIL style
Art.-No. 411-01015 | 1101-4-B7-PO-X-BK Details

  • Used in conjunction with a circular grooved adaptor for strain relief

Request your individual offer now

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool H6100, CHG900
Colour Black (BK)
Local order number 1101-4-B7
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 1101-4-B7-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 1100 Series, with rib
Product Group Right-Angle Shapes, MIL style
Type 1101-4-B7
Variant For plug
Angle 90
Flexibility Semi rigid
HW ± 20% 2mm
JW ± 30% 2mm
M nom 27.9mm
P ± 10% 53.3mm
R ± 10% 43.2mm
S nom 15.7mm
T ± 20% 1.7mm
V max 3.3mm
Weight/Unit 0.014kg
∅H max b 27.9mm
∅H min a 42.6mm
∅J max b 9.7mm
∅J min. a 42.6mm
Designation as per VG-Norm VG 95343 T06 F 011 A
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Minimum Shrink Temperature - °C +135 °C
Nato number 5970-00-344-2231
Operating Temperature -55 °C to +135 °C
ROHS compliant Yes
Specifications
Tensile Strength 13MPa
UV-Stabilised No
Country of Origin GB
GTIN-13 / EAN 5022660407093
Packaging 1 - Height (m) 0.050m
Packaging 1 - Length (m) 0.200m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0012
Packaging 1 - Weight (kg) 0.014kg
Packaging 1 - Width (m) 0.120m
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
