Right-Angle Shapes, MIL style
Art.-No. 411-01021 | 1101-4-H-PO-X-BK |

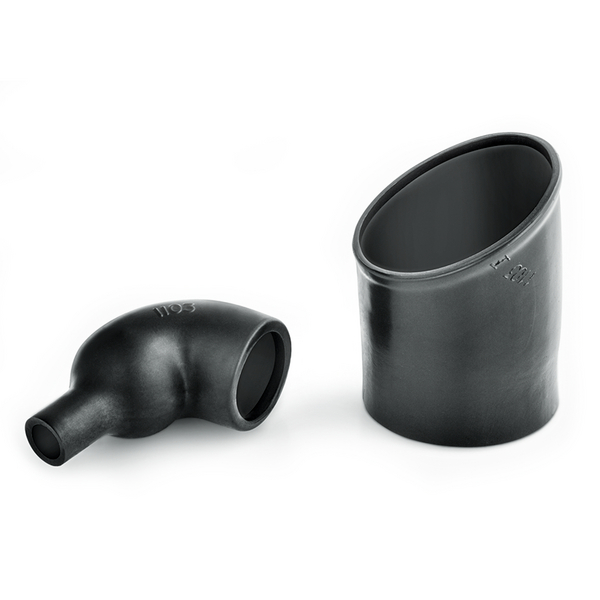

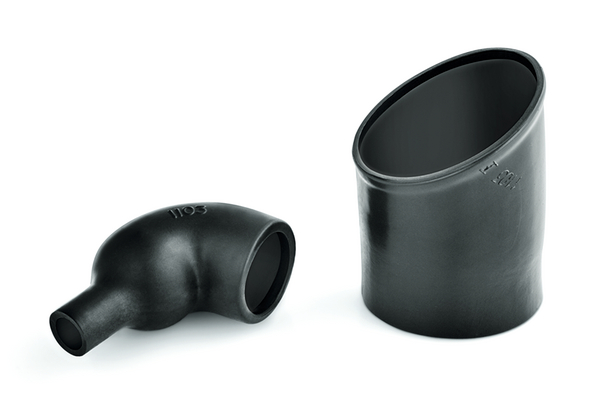

1108-4 supplied / fully recovered.

Space saving right-angle shapes used here in a military application.

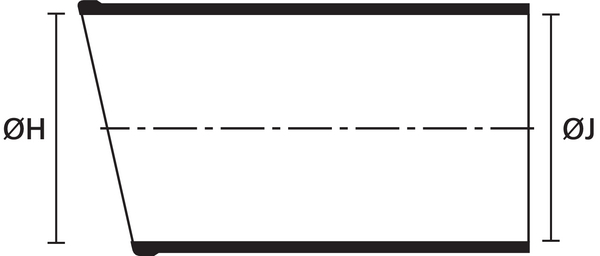

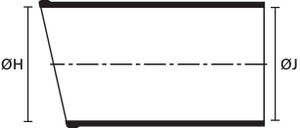

a: Expanded form (supplied)

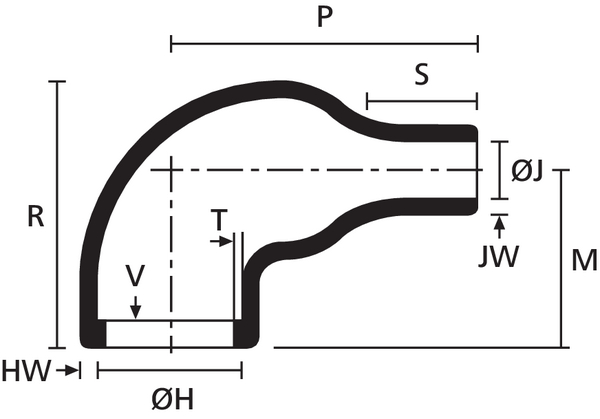

b: Fully recovered form (after heating)

Used in conjunction with a circular grooved adaptor for strain relief

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Right-Angle Shapes, MIL style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	1101-4-HWM250
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	1101-4-H-PO-X-BK
Package Content	1pc.
Package Content packed in	Bag
Product Family	Helashrink 1100 Series, with rib
Product Group	Right-Angle Shapes, MIL style
Type	1101-4-H
UV-Stabilised	No
Variant	For plug
Weight/Unit	0.014kg

Product Dimensions


⌀H max b	27.9mm
⌀H min a	42.6mm
⌀J max b	9.7mm
⌀J min. a	42.6mm
Angle	90
Flexibility	Flexible
For Object Outside Diameter	30.84-39.66 mm
HW ± 20%	2mm
JW ± 30%	2mm
M nom	27.9mm
P ± 10%	53.3mm
R ± 10%	43.2mm
T ± 20%	1.7mm
V max	3.3mm

Downloads

Specifications

Dielectric Strength	15kV/mm
Dielectric Strength test method	ASTM D2671
Halogen-free	Yes
Minimum Shrink Temperature	+135 °C
Operating Temperature	-55 °C to +105 °C
ROHS compliant	Yes
Shelf Life	5 years
Specifications
Tensile Strength	10MPa

Logistics and Packaging

Country of Origin	GB
Packaging 1 - Height (m)	0.050m
Packaging 1 - Length (m)	0.200m
Packaging 1 - Qty	1
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.0012m³
Packaging 1 - Weight (kg)	0.015kg
Packaging 1 - Width (m)	0.120m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
