Helashrink 1100 Series, with rib, low profile, high ratio
Art.-No. 411-36009 | 1136-1-G-PO-X-BK | Details

1135-1-G Supplied and recovered.

Use in applications of partially loaded connectors with small cable diameters
Tail design for easy orientation prior to cooling
Strain relief for connector cable

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Right-Angle Shapes, VG style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool	H6100, CHG900
Colour	Black (BK)
Local order number	1136-1-G
Material	Polyolefin, cross-linked (PO-X)
Pack Cont.	1pc.
Package Content packed in	Bag
PART DESCRIPTION	1136-1-G-PO-X-BK
Product Family	Helashrink 1100 Series, with rib, low profile, high ratio
Product Group	Right-Angle Shapes, VG style
Shrink Ratio	up to 3:1
Variant	For plug

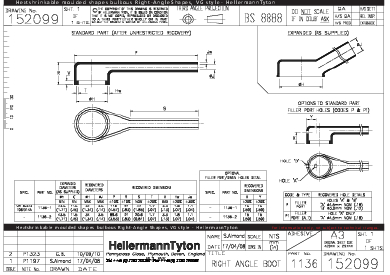

Product Dimensions


Angle	90°
Flexibility	Semi rigid
HW ± 20%	1.8mm
JO ± 10%	47mm
JW ± 20%	1.1mm
JW ± 30%	1.1mm
P ± 10%	116mm
R ± 10%	21mm
S nom	47mm
T ± 10%	1.7mm
T ± 20%	1.7mm
V max	3.3mm
V ± 10%	3mm
Weight/Unit	0.020kg
∅H max b	34mm
∅H min a	43.5mm
∅J max b	3.5mm
∅J min. a	11.5mm

Downloads

Specifications

Dielectric Strength	14kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Minimum Shrink Temperature - °C	+135 °C
Nato number	5970-12-305-9880, 5970-99-732-2954
Operating Temperature	-75 °C to +150 °C
Shelf Life	5 years
Specifications
Tensile Strength	15MPa

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660414602
Packaging 1 - Height (m)	0.035m
Packaging 1 - Length (m)	0.200m
Packaging 1 - Qty	1
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.0014m³
Packaging 1 - Weight (kg)	0.020001kg
Packaging 1 - Width (m)	0.200m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
