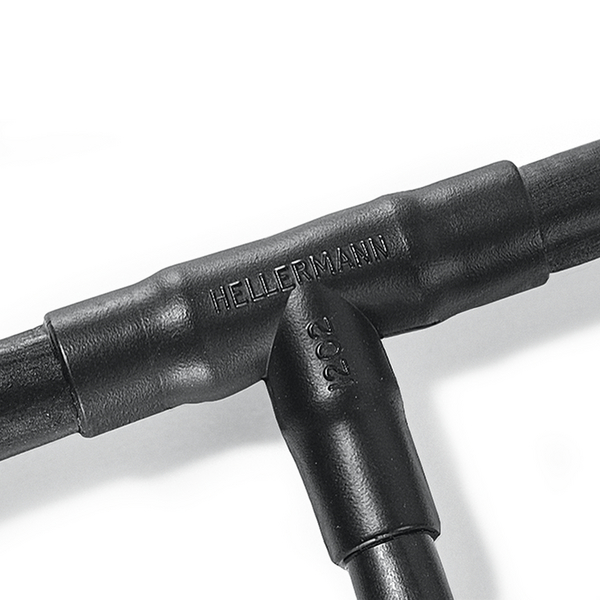

Helashrink 1200 Series
Art.-No. 412-02008 | 1202-1-J-PO-X-BK Details

  • Strain relief, sealing and mechanical protection on cable harnesses

Request your individual offer now

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool H6100, CHG900
Colour Black (BK)
Local order number 1202-1-J
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 1202-1-J-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 1200 Series
Product Group T-Shapes, VG style/MIL style
Type 1202-1-J
Variant For 2-core cables
Flexibility Semi rigid
HW ± 20% 1.5mm
HW ± 30% 1.5mm
JW ± 20% 1.5mm
JW ± 30% 1.5mm
KW ± 20 % 1.5mm
M nom 37mm
P ± 10% 58.7mm
R ± 10% 29.2mm
S ± 10% 29.2mm
Weight/Unit 0.005kg
∅H max b 6.1mm
∅H min a 13.2mm
∅J max b 6.1mm
∅J min. a 13.2mm
∅K max. b 6.1mm
∅K min. a 13.2mm
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Nato number 5970-01-041-3884
Operating Temperature -75 °C to +150 °C
ROHS compliant Yes
Shelf Life 5 years
Specifications
UV-Stabilised No
Country of Origin GB
GTIN-13 / EAN 5022660418488
Packaging 1 - Height (m) 0.020m
Packaging 1 - Length (m) 0.160m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00032
Packaging 1 - Weight (kg) 0.005kg
Packaging 1 - Width (m) 0.100m
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
