T-Shapes, VG style/MIL style : 1203-1-G
T-Shape VG-Style black, PO-X, up to 3:1, Article number: 412-03180
Features
- 4-way outlet shape
- Cable sealing, strain relief and mechanical protection
Certifications & Approvals
Application
Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications
Helashrink 1200 Series is suitable for following markets and industries
More products in this product group
T-Shapes, VG style/MIL style >| Application Tool | H6100, E4500 |
| Colour | Black (BK) |
| Pack Cont. | 1pc. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | 1203-1-G-PO-X-BK |
| Product Family | Helashrink 1200 Series |
| Product Group | T-Shapes, VG style/MIL style |
| Short Description | T-Shape VG-Style black, PO-X, up to 3:1 |
| Shrink Ratio | up to 3:1 |
| Type | VG95343T08A001A |
| Variant | For 2-core cables |
|
|
|

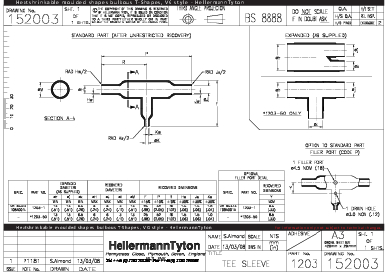

| Flexibility | Semi rigid |
| HW ± 20% | 1.5mm |
| HW ± 30% | 1.5mm |
| HW/JW ± 10% | 1.5mm |
| JW ± 20% | 1.5mm |
| JW ± 30% | 1.5mm |
| KW ± 20 % | 1.0mm |
| M nom | 13.0mm |
| P ± 10% | 52.0mm |
| R ± 10% | 26.0mm |
| S ± 10% | 19.3mm |
| ∅H max b | 6.0mm |
| ∅H min a | 13.0mm |
| ∅H/J max b | 6.0mm |
| ∅H/J min a | 13.0mm |
| ∅J max b | 6.0mm |
| ∅J min. a | 13.0mm |
| ∅K max. b | 3.0mm |
| ∅K min. a | 6.5mm |
| Designation as per VG-Norm | VG 95343 T08 A 001 A |
| Dielectric Strength | 14 kV/mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | ASTM D635 |
| Hazardous good | No |
| Material | Polyolefin, cross-linked (PO-X) |
| Minimum Shrink Temperature - °C | +135 °C |
| Operating Temperature - °C | -75 °C to +150 °C |
| Specifications |
|
| Specifications | DEF STAN 59-97/3, VG 95343-8:2016-03 |
|
|
|
| EAN / GTIN | 5022660635342 |
| Packaging 1 - Height (m) | 0.02m |
| Packaging 1 - Length (m) | 0.13m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00026m³ |
| Packaging 1 - Weight (kg) | 0.005kg |
| Packaging 1 - Width (m) | 0.1m |
| Weight | 0.005kg |
| ETIM 6.0 | EC002464 |
| ETIM 7.0 Key | EC002464 |
