04/09/2025

T-Shapes, VG style/MIL style
Art.-No. 412-05008 | 1205-1-J-PO-X-BK |

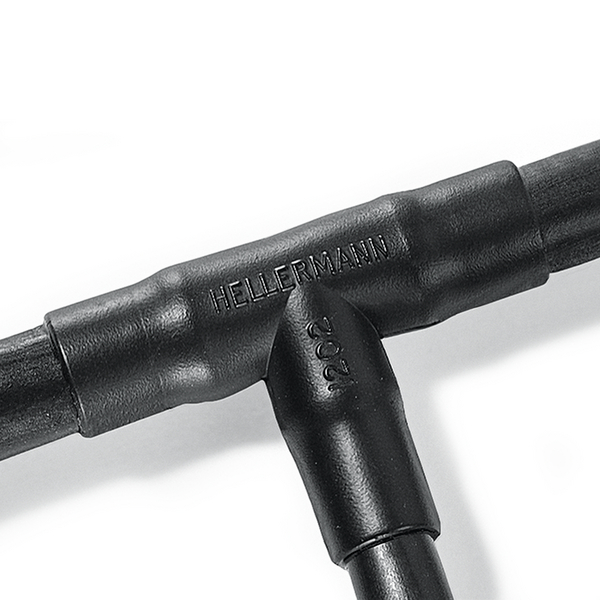

1202-1-G recovered onto a cable harness.

a: Expanded form (supplied)

b: Fully recovered form (after heating)

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

T-Shapes, VG style/MIL style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	1205-1-J
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	1205-1-J-PO-X-BK
Package Content	1pc.
Package Content packed in	Bag
Product Family	Helashrink 1200 Series
Product Group	T-Shapes, VG style/MIL style
Type	1205-1-J
UV-Stabilised	No
Variant	For 2-core cables
Weight/Unit	0.004kg

Product Dimensions


⌀H max b	8.9mm
⌀H min a	17.7mm
⌀J max b	8.9mm
⌀J min. a	17.1mm
⌀K max. b	3.8mm
⌀K min. a	7.6mm
Flexibility	Semi rigid
HW ± 20%	1.5mm
JW ± 20%	1.5mm
JW ± 30%	1.5mm
KW ± 20 %	1mm
M nom	11mm
P ± 10%	50.8mm
R ± 10%	25.4mm
S ± 10%	25.4mm

Downloads

Specifications

Dielectric Strength	14kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Minimum Shrink Temperature	+135 °C
Nato number	5970-01-090-2517
Operating Temperature	-75 °C to +150 °C
ROHS compliant	Yes
Shelf Life	5 years
Specifications

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660419430
Packaging 1 - Height (m)	0.020m
Packaging 1 - Length (m)	0.160m
Packaging 1 - Qty	1
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.00032m³
Packaging 1 - Weight (kg)	0.004001kg
Packaging 1 - Width (m)	0.100m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
