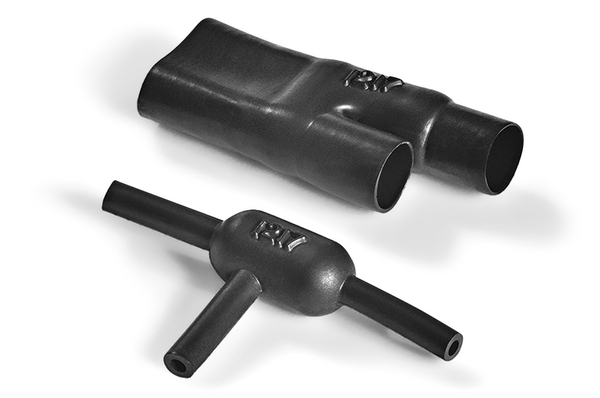

T-Shapes
Art.-No. 412-23003 | 1223-1-HP-PO-X-BK Details

  • Provides strain relief, sealing and mechanical protection where a cable transition is required on the harness
  • Recommended to use an adhesive if environmental sealing is required.

Request your individual offer now

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool H6100, CHG900
Colour Black (BK)
Local order number 1223-1-HP
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 1223-1-HP-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 1200 Series, Offset
Product Group T-Shapes
Type 1223-1-HP
Variant For 2-core cables
Flexibility Flexible
HW ± 20% 2.5mm
JW ± 20% 1.8mm
KW ± 20 % 2.5mm

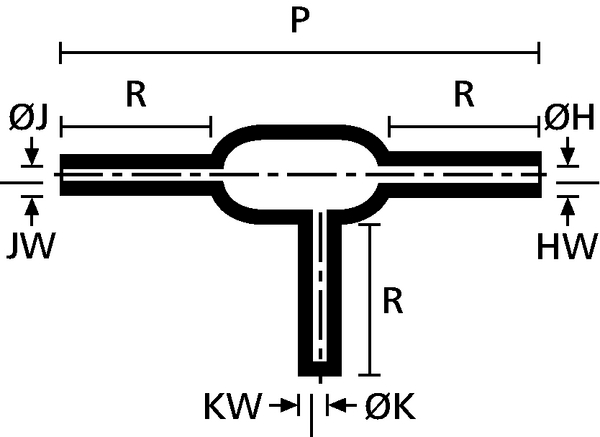

P ± 10% 93.2mm
R ± 10% 56.6mm
S ± 10% 56.6mm

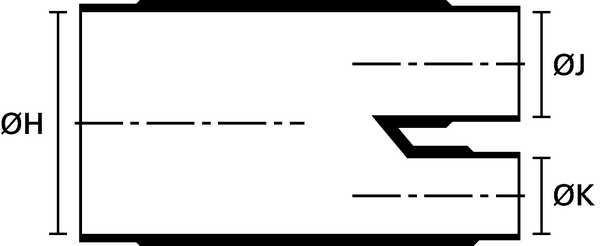

∅H max b 16.3mm
∅H min a 29.5mm
∅J max b 5.3mm
∅J min. a 9.6mm
∅K max. b 16.3mm
∅K min. a 29.5mm
Dielectric Strength 15kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Halogen-free Yes
Minimum Shrink Temperature - °C +135 °C
Operating Temperature -55 °C to +105 °C
ROHS compliant Yes
Specifications
Tensile Strength 10MPa
Country of Origin GB
GTIN-13 / EAN 5022660420986
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
