T-Shapes


Art.-No. 412-24001

| 1224-1-G-PO-X-BK

 |

Copied

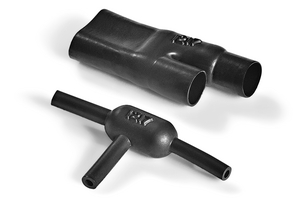

1217-1 supplied / fully recovered.
a: Expanded form (supplied)
b: Fully recovered form (after heating)

    • Provides strain relief, sealing and mechanical protection where a cable transition is required on the harness
    • Recommended to use an adhesive if environmental sealing is required.
    Add to watchlist
    Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Local order number 1224-1-G
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 1224-1-G-PO-X-BK
    Package Content 1pc.
    Package Content packed in Bag
    Product Family Helashrink 1200 Series, Offset
    Product Group T-Shapes
    Type 1224-1-G
    Variant For 2-core cables
    ⌀H max b 6.0mm
    ⌀H min a 30mm
    ⌀J max b 5mm
    ⌀J min. a 15mm
    ⌀K max. b 5mm
    ⌀K min. a 15mm
    Flexibility Semi rigid
    For Object Outside Diameter 10.8-25.2 mm
    HW ± 20% 2mm
    JW ± 20% 2mm
    KW ± 20 % 2mm
    P ± 10% 54mm
    R ± 10% 24mm
    S ± 10% 11mm
    T ± 10% 90mm
    Tube Shape Specialty
    V ± 10% 5mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Minimum Shrink Temperature +135 °C
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Tensile Strength 15MPa
    Country of Origin GB
    GTIN-13 / EAN 5022660421044
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
