Long Outlet Shape, VG style
Art.-No. 401-30001 | 130-1-B7-PO-X-BK |

Copied

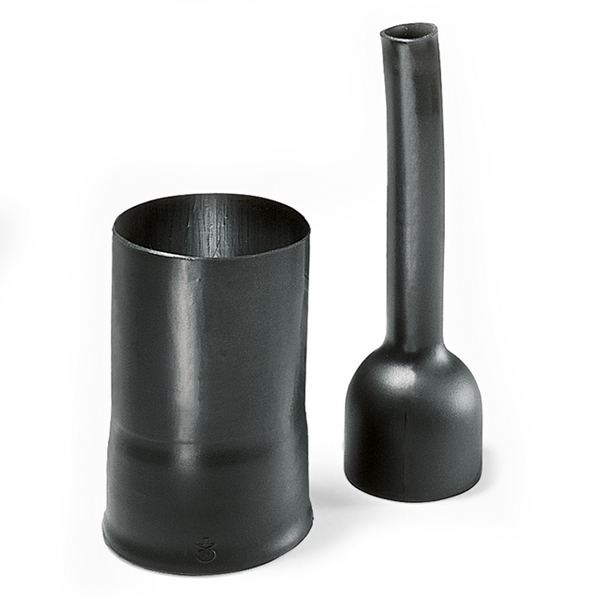

135-1-G as supplied / fully recovered.
a: Expanded form (supplied)
b: Fully recovered form (after heating)

    • Low profile and lightweight
    • Typically used on airborne harnesses
    • Rib locates on circular backshell
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Local order number 130-1-B7
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 130-1-B7-PO-X-BK
    Package Content 1pc.
    Package Content packed in Bag
    Product Family Helashrink 130 Series, with rib, low profile
    Product Group Long Outlet Shape, VG style
    Type 130-1-B7
    UV-Stabilised No
    Variant For plug
    ⌀H max b 15mm
    ⌀H min a 25.2mm
    ⌀J max b 7.5mm
    ⌀J min. a 25.5mm
    HW ± 20% 1.5mm
    P ± 10% 83mm
    R nom 12mm
    S nom 60mm
    T ± 20% 1mm
    V max 3.3mm
    V ± 10% 3mm
    Minimum Shrink Temperature +135 °C
    Nato number 5970-01-400-2479
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660423048
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
