Long Outlet Shape, VG style


Art.-No. 401-34001

| 134-1-B7-PO-X-BK

 |

Copied
1694444

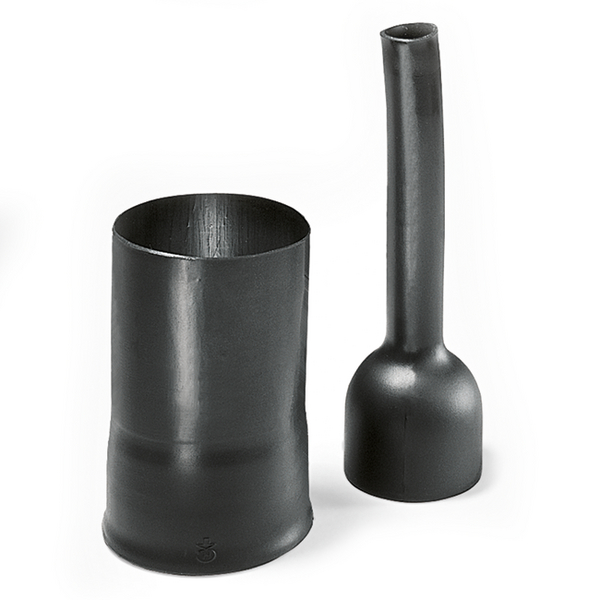

a: Expanded form (supplied)
b: Fully recovered form (after heating)
135-1-G as supplied / fully recovered.

    • Low profile and lightweight
    • Typically used on airborne harnesses
    • Rib locates on circular backshell
    Add to watchlist
    Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Local order number 134-1-B7
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 134-1-B7-PO-X-BK
    Package Content 1pc.
    Package Content packed in Bag
    Product Family Helashrink 130 Series, with rib, low profile
    Product Group Long Outlet Shape, VG style
    Type 134-1-B7
    UV-Stabilised No
    Variant For plug
    Weight/Unit 0.013kg
    ⌀H max b 34.0mm
    ⌀H min a 43.5mm
    ⌀J max b 12mm
    ⌀J min. a 43.5mm
    Flexibility Semi rigid
    For Object Outside Diameter 35.9-41.6 mm
    HW ± 20% 2mm
    JW ± 30% 1.1mm
    P ± 10% 114mm
    R nom 15mm
    S nom 74mm
    T ± 20% 1.7mm
    Tube Shape Specialty
    V max 3.3mm
    V ± 10% 3mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Minimum Shrink Temperature +135 °C
    Nato number 5975-99-655-8606
    Operating Temperature -55 °C to +135 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Tensile Strength 13MPa
    Country of Origin GB
    GTIN-13 / EAN 5022660426667
    Packaging 1 - Height (m) 0.050m
    Packaging 1 - Length (m) 0.200m
    Packaging 1 - Qty 1
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.0012m³
    Packaging 1 - Weight (kg) 0.013001kg
    Packaging 1 - Width (m) 0.120m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
