End Caps : 1609-1-B5W2
End Cap (up to 3:1) PO-X black, Article number: 416-09000
Features
- Seal cables during storage or transportation
- Insulating cap for live LV cables (0.6/1kV)
- Adhesive lining for excellent environmental seal
- High shrink ratio to minimise number of sizes needed
- Can be fitted with air valves for pressurised cable applications
- High shrink ratio to minimise number of sizes needed
Certifications & Approvals
Application
End caps are suitable for use on both polymeric and paper insulated, lead jacketed cables which may include aluminium or steel armouring.
Helashrink 1600 Series, low voltage is suitable for following markets and industries
More products in this product group
End Caps >| Application Tool | H6100, E4500 |
| Colour | Black (BK) |
| Pack Cont. | 30pcs. |
| Package Quantity per | Box |
| PART DESCRIPTION | 1609-1-B5W2-PO-X-BK |
| Product Family | Helashrink 1600 Series, low voltage |
| Product Group | End Caps |
| Short Description | End Cap (up to 3:1) PO-X black |
| Shrink Ratio | up to 3:1 |
| Type | 1609-1-B5W2 |
|
|
|
| Bundle ∅ max. | 110.0mm |
| Bundle ∅ min. | 65.0mm |
| Flexibility | Semi rigid |

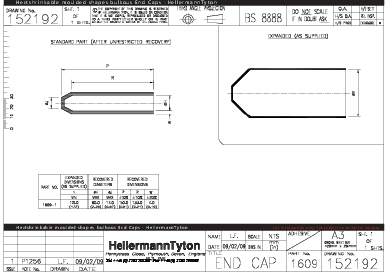

| HW ± 20% | 4.2mm |
| Max Voltage | 600V |
| P ± 10% | 150.0mm |
| Recov. ∅ d | 60.0mm |
| Supplied ∅ D | 120.0mm |
| W ± 20 % | 4.2mm |
| ∅H max b | 60.0mm |
| ∅H min a | 120.0mm |
| ∅J max b | 17.0mm |
| Adhesive | W2 |
| Dielectric Strength | 15 kV/mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | ASTM D635 |
| Hazardous good | No |
| Material | Polyolefin, cross-linked (PO-X) |
| Minimum Shrink Temperature - °C | +135 °C |
| Operating Temperature - °C | -55 °C to +80 °C |
| Specifications |
|
| Tensile Strength | 12MPa |
|
|
|
| EAN / GTIN | 5022660655098 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.13m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | pcs. |
| Packaging 1 - Volume (m³) | 0.00254m³ |
| Packaging 1 - Weight (kg) | 0.154kg |
| Packaging 1 - Width (m) | 0.13m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 30 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 5.44501kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 0.905m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 360 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.869m³ |
| Packaging 4 - Weight (kg) | 86.34kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.154kg |
| ETIM 6.0 | EC000218 |
| ETIM 7.0 Key | EC000218 |
