End Cap with Thermoplastic Adhesive for Low Voltage black, PO-X, up to 3:1
Art.-No. 416-17033 | 1617-1-B5W2-PO-X-BK Details

  • Seal cables during storage or transportation
  • Insulating cap for live LV cables (0.6/1kV)
  • Adhesive lining for excellent environmental seal
  • High shrink ratio to minimise number of sizes needed
  • Can be fitted with air valves for pressurised cable applications
  • High shrink ratio to minimise number of sizes needed
Show more

Request your individual offer now

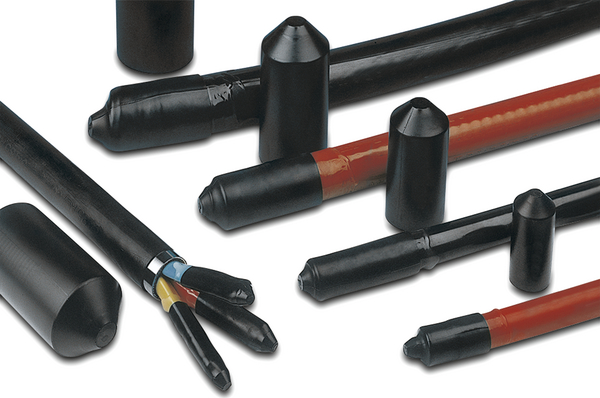

Application End caps are suitable for use on both polymeric and paper insulated, lead jacketed cables which may include aluminium or steel armouring.
Colour Black (BK)
Local order number 1617-1-B8W2
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 1617-1-B5W2-PO-X-BK
Pack Cont. 60pcs.
Package Content packed in Box
Product Family Helashrink 1600 Series, low voltage
Product Group End Caps
Short Description End Cap with Thermoplastic Adhesive for Low Voltage black, PO-X, up to 3:1
Shrink Ratio up to 3:1
Size (imperial) 3"
Type 1617-1-B5W2
Bundle Diameter max (metric) 61.0mm
Bundle ∅ 32.0-61.0mm
Bundle ∅ min. 32.0mm
Flexibility Semi rigid

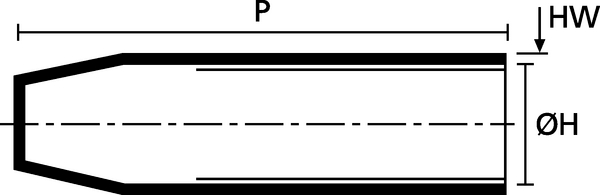

HW ± 20% 4.0mm
Max Voltage 600V
P ± 10% 140.0mm
Recov. ∅ d 32.0mm

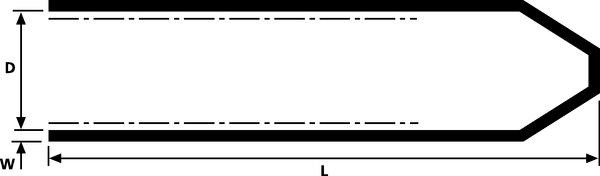

Supplied ∅ D 75.0mm
W ± 20 % 4.0mm
Weight/Unit 0.081kg
∅H max b 32.0mm
∅H min a 75.0mm
Adhesive W2
Dielectric Strength 15kV/mm
ELV compliant Dir. Art. 4 (2) YES
Flammability ASTM D635
Hazardous Goods No
Minimum Shrink Temperature +135 °C
Operating Temperature -55 °C to +80 °C
ROHS compliant Yes
Specifications
Tensile Strength 12MPa
Country of Origin CN
Customs Number 39174000
GTIN-13 / EAN 5022660647185
Packaging 1 - Height (m) 0.076m
Packaging 1 - Length (m) 0.158m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00091
Packaging 1 - Weight (kg) 0.081001kg
Packaging 1 - Width (m) 0.076m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 60
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 5.68006kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 720
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 89.16kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000218
ETIM 8.0 Key EC000218
ETIM 9.0 Key EC000218
UNSPSC Key 39121721
