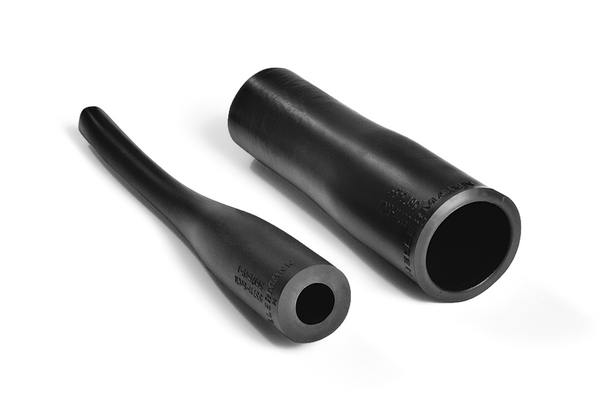

GSR Graduated Strain Relief
Art.-No. 417-54001 | 1754-1-H-PO-X-BK Details

  • Ideally suited for shipboard and railway carriage cabling
  • Very robust, superior crush resistance and excellent strain relief
  • Wall thickness varies with long tail, allowing setting at varying angles through 90°

Request your individual offer now

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour Black (BK)
Local order number 1754-1-H
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 1754-1-H-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 1750 Series, with rib
Product Group GSR Graduated Strain Relief
Type 1754-1-H
Flexibility Semi rigid

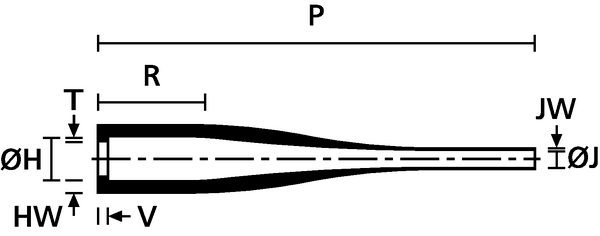

HW ± 20% 4.1mm
JW ± 20% 2.0mm
P ± 10% 175.3mm
R ± 10% 38.1mm
T ± 10% 1.5mm
V ± 10% 3.0mm

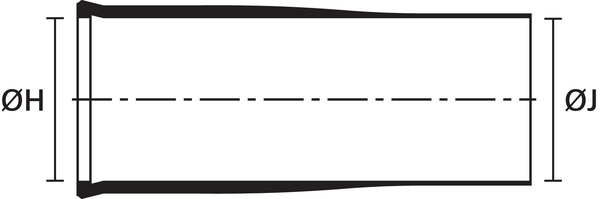

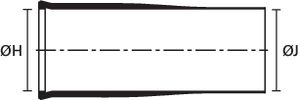

∅H max b 27.9mm
∅H min a 53.4mm
∅J max b 17.7mm
∅J min. a 53.4mm
Flammability ASTM D635
Minimum Shrink Temperature +135 °C
ROHS compliant Yes
Specifications
Country of Origin GB
GTIN-13 / EAN 5022660439070
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
