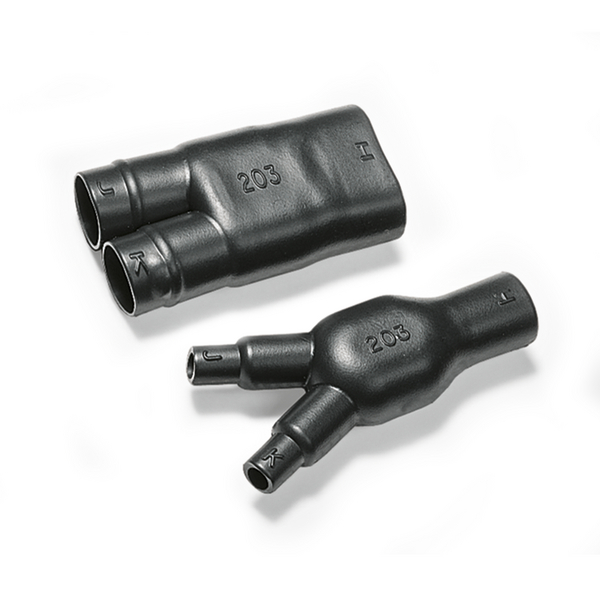

2-Way Outlet Shapes, VG style
Art.-No. 402-12010
| 212-1-J-PO-X-BK
|
Copied
- Mechanical tension relief in cable harnesses
Request quote
More products in this product group:
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Colour | Black (BK) |
| Local order number | 212-1-J |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | 212-1-J-PO-X-BK |
| Package Content | 1pc. |
| Package Content packed in | Bag |
| Product Family | Helashrink 200 Series |
| Product Group | 2-Way Outlet Shapes, VG style |
| Type | 212-1-J |
| UV-Stabilised | No |
| Variant | For 2-core cables |
|
|
|
| ⌀H max b | 8.0mm |
| ⌀H min a | 14.5mm |
| ⌀J max b | 5.5mm |
| ⌀J min. a | 8.5mm |
| ⌀J/K max. b | 5.5mm |
| ⌀J/K min. a | 8.5mm |
| ⌀K max. b | 5.5mm |
| ⌀K min. a | 8.5mm |
| Flexibility | Semi rigid |
| For Object Outside Diameter | 9.3-13.2 mm |
| HW ± 20% | 2.3mm |
| HW ± 30% | 2.5mm |
| JW nom | 2mm |
| JW/KW ± 30% | 2mm |
| P ± 10% | 136mm |
| R nom | 83mm |
| R ± 10% | 63mm |
| S nom | 63mm |
| Tube Shape | Multi-Outlet |
