2-Way Outlet Shapes, Breakout Boots 219-2-G

Helashrink 200 Series, in line, low voltage, Article number: 402-19041

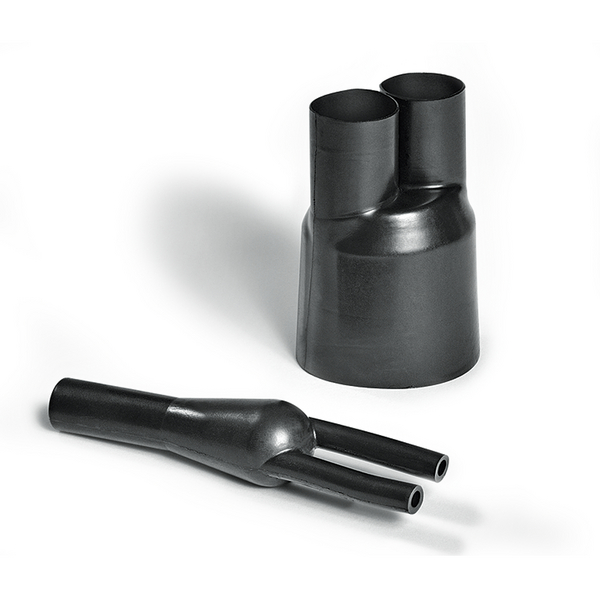

223-2 supplied / fully recovered.


  • Easy, time-saving insulation of cable branch point where it splits into single wires
  • Adhesive is applied to relieve mechanical tension in cable harnesses

Certifications & Approvals


Cable breakouts are manufactured from a tough cross-linked flame retarded polyolefin. This allows the breakouts to be used for both interior and exterior applications. The adhesive liner offers excellent electrical and mechanical protection and are available for 2, 3, 4, 5 and 6 core cables.

Application Tool H5002, H5004, E4500
Colour Black (BK)
Pack Cont. 1pc.
Package Quantity per Box
Product Family Helashrink 200 Series, in line, low voltage
Product Group 2-Way Outlet Shapes, Breakout Boots
Shrink Ratio up to 3:1
Type 219-2-B7WM250
Variant For 2-core cables
Bundle ∅ max. 400.0mm
Bundle ∅ min. 185mm
Flexibility Semi rigid
HW ± 20% 3.8mm
JW ± 20% 3.8mm
P ± 10% 141.5mm
R ± 10% 42.5mm
S nom 44mm
∅H max b 38.1mm
∅H min a 77mm
∅J max b 12.7mm
∅J min. a 37mm
∅K max. b 12.7mm
∅K min. a 37mm
Dielectric Strength 15 kV/mm
Flammability ASTM D635
Material Polyolefin, cross-linked (PO-X)
Minimum Shrink Temperature - °C +135 °C
Operating Temperature - °C -55 °C to +70 °C
EAN / GTIN 5022660674846
ETIM 5.0 EC002464
ETIM 6.0 EC002464
