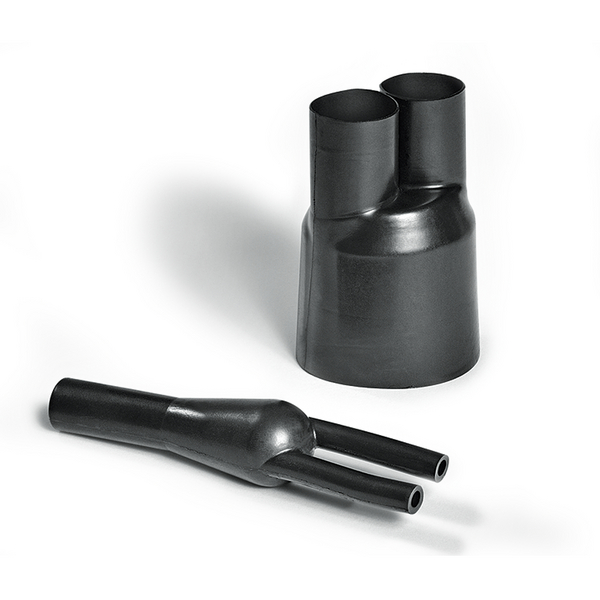

2-Way Outlet Shapes, Breakout Boots
Art.-No. 402-20008 | 220-1-B7-PO-X-BK Details

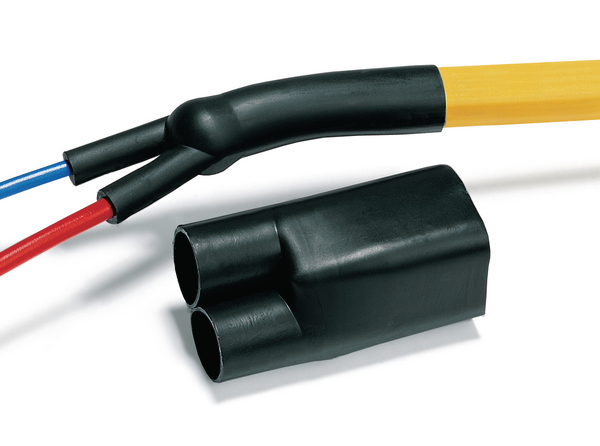

  • Easy, time-saving insulation of cable branch point where it splits into single wires
  • Adhesive is applied to relieve mechanical tension in cable harnesses

Request your individual offer now

Application Cable breakouts are manufactured from a tough cross-linked flame retarded polyolefin. This allows the breakouts to be used for both interior and exterior applications. The adhesive liner offers excellent electrical and mechanical protection and are available for 2, 3, 4, 5 and 6 core cables.
Colour Black (BK)
Local order number 220-1-B7
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 220-1-B7-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 200 Series, in line, low voltage
Product Group 2-Way Outlet Shapes, Breakout Boots
Shrink Ratio up to 3:1
Type 220-1-B7
Variant For 2-core cables
Flexibility Semi rigid

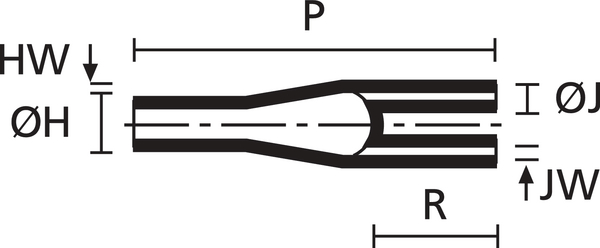

HW ± 20% 2.5mm
JW ± 20% 2.0mm
P ± 10% 175.0mm
R ± 10% 100.0mm
S nom 33.0mm
Tolerance +/- ±13%

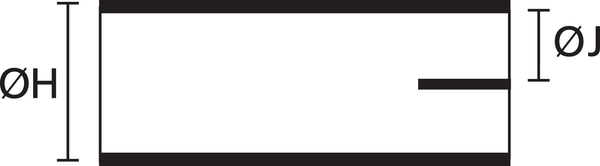

∅H max b 28.0mm
∅H min a 50.0mm
∅J max b 8.0mm
∅J min. a 23.0mm
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Minimum Shrink Temperature +135 °C
Operating Temperature -55 °C to +135 °C
ROHS compliant Yes
Specifications
UV-Stabilised No
Country of Origin GB
GTIN-13 / EAN 5022660447938
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
