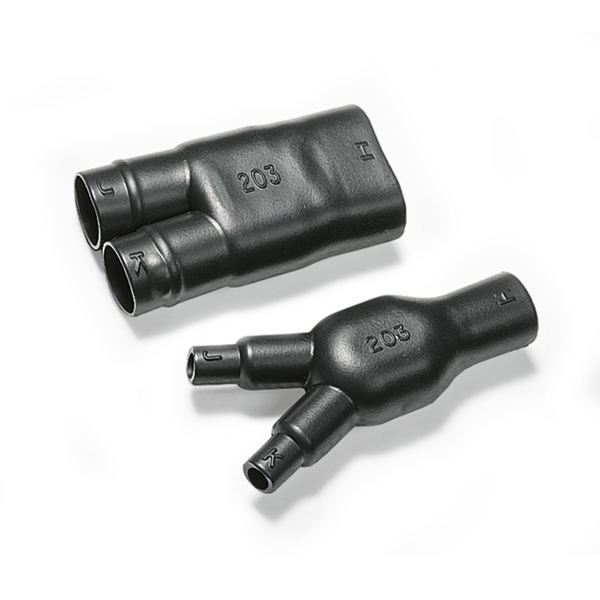

2-Way Outlet Shapes, VG style
Art.-No. 402-27004 | 227-1-G-PO-X-BK Details

  • Mechanical tension relief in cable harnesses

Request your individual offer now

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool H6100, E4500, CHG900
Colour Black (BK)
Local order number 227-1-G
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 227-1-G-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 200 Series
Product Group 2-Way Outlet Shapes, VG style
Type 227-1-G
Variant For 2-core cables
Flexibility Semi rigid
HW ± 20% 2mm
JW ± 20% 1mm
P ± 10% 22.3mm
R ± 10% 19.3mm
∅H max b 3.8mm
∅H min a 13.2mm
∅J max b 2.5mm
∅J min. a 6.6mm
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Minimum Shrink Temperature - °C +135 °C
Operating Temperature -75 °C to +150 °C
ROHS compliant Yes
Specifications
Tensile Strength 15MPa
UV-Stabilised No
Country of Origin GB
GTIN-13 / EAN 5022660448546
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
