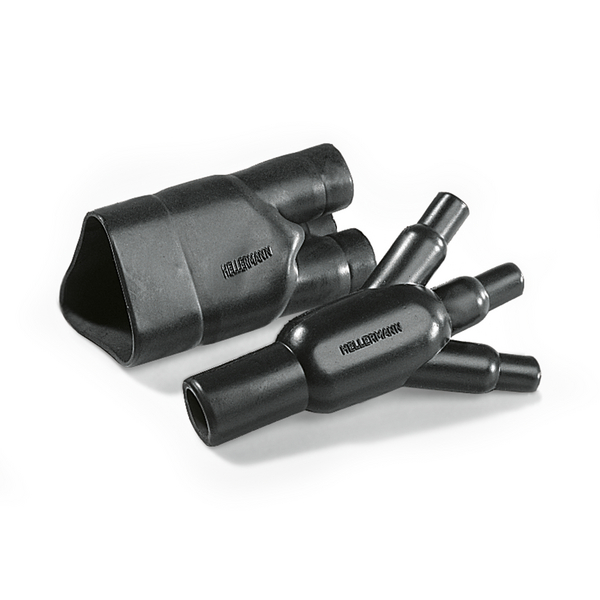

3-Way Outlet Shapes, VG style
Art.-No. 403-04001
| 304-1-B7-PO-X-BK
|
Copied
- Cable strain relief and mechanical protection at harness transition points
- All outlets clearly marked to aid orientation during installation
Request quote
More products in this product group:
| Colour | Black (BK) |
| Local order number | 304-1-B7 |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | 304-1-B7-PO-X-BK |
| Package Content | 1pc. |
| Package Content packed in | Bag |
| Product Family | Helashrink 300 Series |
| Product Group | 3-Way Outlet Shapes, VG style |
| Shrink Ratio | up to 3:1 |
| Type | 304-1-B7 |
| Typical Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| UV-Stabilised | No |
| Variant | For 3-core cables |
|
|
|
| ⌀H max b | 13.5mm |
| ⌀H min a | 27mm |
| ⌀J max b | 7mm |
| ⌀J min. a | 13mm |
| ⌀J/K/L max. b | 7mm |
| ⌀J/K/L min. a | 13mm |
| ⌀K max. b | 7mm |
| ⌀K min. a | 13mm |
| Flexibility | Semi rigid |
| For Object Outside Diameter | 16.2-24.3 mm |
| HW ± 20% | 2.5mm |
| JW ± 30% | 1.5mm |
| P ± 10% | 93mm |
| R ± 10% | 50mm |
| S ± 10% | 50mm |
| T ± 10% | 43mm |
| Tube Shape | Multi-Outlet |
| W ± 20 % | 1.5mm |
| CAS Number | 84852-53-9 |
| Critical Substance | DBDPE |
| Dielectric Strength | 15kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| EC Number | 284-366-9 |
| ELV compliant Dir. Art. 4 (2) | Yes |
| Flammability | ASTM D635 |
| Minimum Shrink Temperature | +135 °C |
| Nato number | 5970-99-654-1128 |
| ROHS compliant | Yes |
| Shelf Life | 5 years |
| Specifications |
|
|
|
|
| Country of Origin | GB |
| Customs Number | 39174000 |
| GTIN-13 / EAN | 5022660451782 |
| Packaging 1 - Height (m) | 0.025m |
| Packaging 1 - Length (m) | 0.130m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Volume (m³) | 0.000325m³ |
| Packaging 1 - Weight (kg) | 0.0120kg |
| Packaging 1 - Width (m) | 0.100m |
| Packaging 2 - Qty | 0 |
| Packaging 3 - Qty | 0 |
| Packaging 4 - Qty | 0 |
