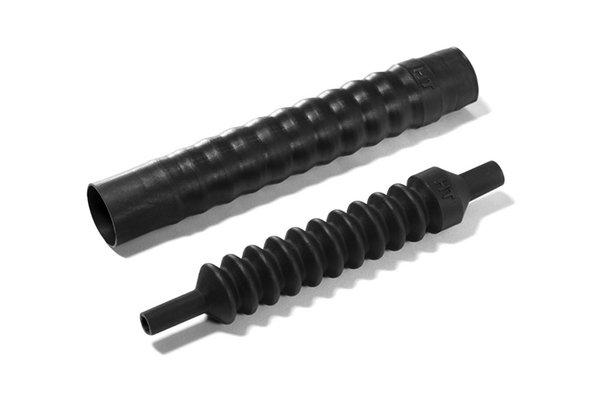

Helashrink 313C Series, with adapter lip
Art.-No. 422-00126 | 313C732-6W24-PO-X-BK Details

  • For circular grooved adapters to provide strain relief
  • Excellent environmental sealing with adhesive
  • Convoluted design grants flexibility for different cable outlet angles

Request your individual offer now

Application Military and general performance harnessing.
Application Tool H6100, E4500, CHG900
Colour Black (BK)
Local order number 313C732-6-450
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 313C732-6W24-PO-X-BK
Pack Cont. 5pcs.
Package Content packed in Bag
Product Family Helashrink 313C Series, with adapter lip
Product Group Low Profile Convolute Boots
Shrink Ratio 4:1
Type 313C732-6W24
Variant For plug
Flexibility Flexible

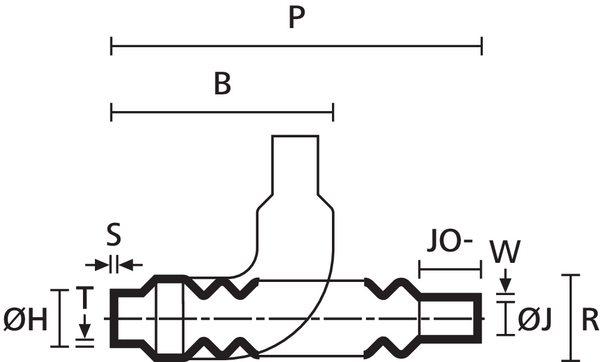

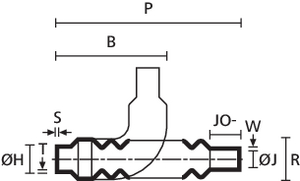

HW ± 1.5 .04mm
JO ± 1.8 19.8mm
P ± 10% 133.3mm
R max 26.5mm
S ± 0.5 1.5mm
S ± 10% .78mm
T ± 0.5 1.3mm
T ± 0.8 1.3mm
W min. 1.5mm
Weight/Unit 0.013kg
∅H max b 11.7mm
∅H min a 22.4mm
∅J max b 8.1mm
∅J min. a 17.7mm
Adhesive W24
Dielectric Strength 20kV/mm
Flammability ASTM D635
Minimum Shrink Temperature - °C +100 °C
Operating Temperature -55 °C to 120 °C
ROHS compliant Yes
Specifications
Country of Origin GB
GTIN-13 / EAN 5022660667732
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
