20/05/2024

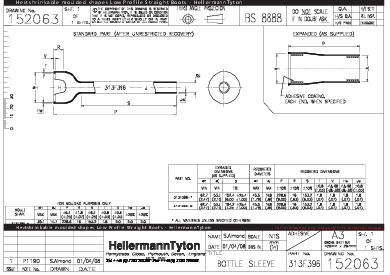

Helashrink 313F Series, with adapter lip
Art.-No. 422-20701 | 313F396-9-PO-X-BK |  Details

313F322-396 Series supplied / fully recovered.

    • Lightweight strain relief for small cable diameters requiring high shrink ratio
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Military and general performance harnessing.
    Application Tool H6100, E4500, CHG900
    Colour Black (BK)
    Local order number 313F396-9W24
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 313F396-9-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in Bag
    Product Family Helashrink 313F Series, with adapter lip
    Product Group Low Profile Straight Boots
    Shrink Ratio 3:1
    Type 313F396-9
    Variant For plug
    Flexibility Flexible
    HW ± 1.5 1.7mm
    JO ± 10% 153.1mm
    JW ± 0.8 1.7mm
    P ± 10% 228.6mm
    R ± 15% 16mm
    S ± 1.5 1.7mm
    T ± 0.8 1.8mm
    ∅H max b 45.4mm
    ∅H min a 62.7mm
    ∅J max b 16.7mm
    ∅J min. a 53.3mm
    Flammability ASTM D635
    Minimum Shrink Temperature - °C +100 °C
    Operating Temperature -55 °C to 120 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
