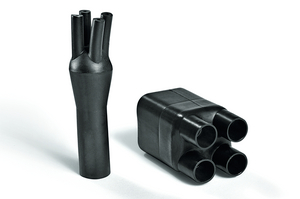

4-Way Outlet Shapes


Art.-No. 404-10004

| 410-1-GW24-PO-X-BK

 |

Copied

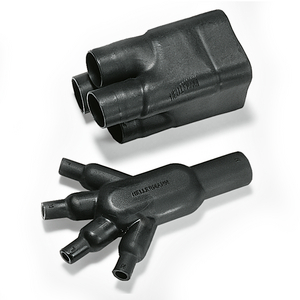

442-1 supplied / fully recovered.
a: Expanded form (supplied)
b: Fully recovered form (after heating)

    • All outlets clearly marked to aid orientation during installation
    • Cable strain relief and mechanical protection at harness transition points
    Add to watchlist
    Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 410-1-GW24-PO-X-BK
    Package Content 1pc.
    Package Content packed in Bag
    Product Family Helashrink 400 Series
    Product Group 4-Way Outlet Shapes
    Type 410-1-GW24
    Variant For 4-core cables
    Weight/Unit 0.01kg
    ⌀H max b 7.0mm
    ⌀H min a 12.0mm
    ⌀J/K/L/N max. b 3.5mm
    ⌀J/K/L/N min. a 6.6mm
    Flexibility Semi rigid
    For Object Outside Diameter 8-11 mm
    HW ± 20% 1.5mm
    JW/KW ± 30% 1.0mm
    P ± 10% 65mm
    R nom 24.0mm
    R ± 10% 24.0mm
    S nom 24mm
    S ± 10% 24.0mm
    T ± 20% 38mm
    Tube Shape Multi-Outlet
    W ± 10 % 1.0mm
    ELV compliant Dir. Art. 4 (2) Yes
    Flammability ASTM D635
    Hazardous Goods No
    Minimum Shrink Temperature +135 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Country of Origin GB
    Customs Number 39174000
    GTIN-13 / EAN 5022660690044
    Packaging 1 - Height (m) 0.07m
    Packaging 1 - Length (m) 0.1m
    Packaging 1 - Qty 1
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00105m³
    Packaging 1 - Weight (kg) 0.010001kg
    Packaging 1 - Width (m) 0.15m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
