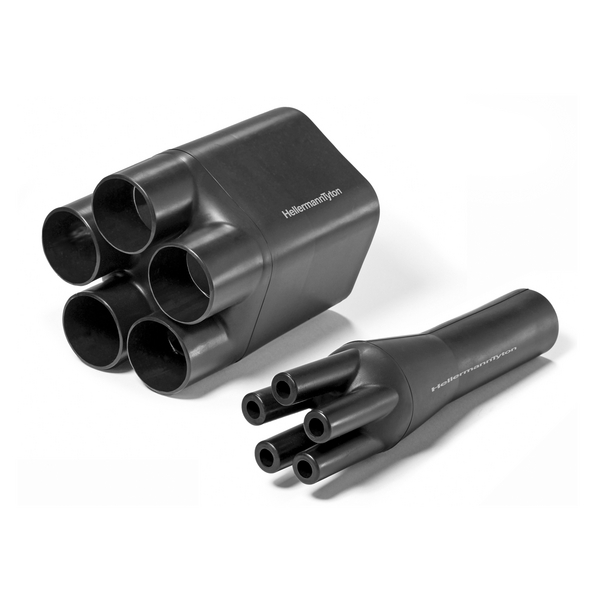

5-Way Outlet Shapes, Breakout Boots
Art.-No. 405-08011 | 508-1-J-PO-X-BK Details

  • Cable breakout boots for insulating and sealing cable crotch or conduit system
  • Excellent resistance to abrasion and weathering

Request your individual offer now

Application Cable breakouts are manufactured from a tough cross-linked polyolefin containing a flame retardant. This allows the breakout to be used for both interior and exterior applications. they offer excellent electrical and mechanical protection. Cable breakouts are supplied with an adhesive inner coating for reliable environmental sealing, and are available for 2,3,4,5 and 6 conductor cables.
Colour Black (BK)
Local order number 508-1-J
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 508-1-J-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 500 Series, in line, low voltage
Product Group 5-Way Outlet Shapes, Breakout Boots
Shrink Ratio up to 3:1
Type 508-1-J
Variant For 5-core cables
Flexibility Flexible
HW ± 20% 3.5mm
JW ± 20% 3mm
P ± 10% 180mm
R ± 10% 30mm
S nom 48mm
∅H max b 24.5mm
∅H min a 60mm
∅J max b 7.5mm
∅J min. a 30mm
Dielectric Strength 15kV/mm
Flammability ASTM D635
Minimum Shrink Temperature +135 °C
Operating Temperature -55 °C to +135 °C
ROHS compliant Yes
Specifications
Tensile Strength 19MPa
UV-Stabilised No
Country of Origin GB
GTIN-13 / EAN 5022660466304
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
