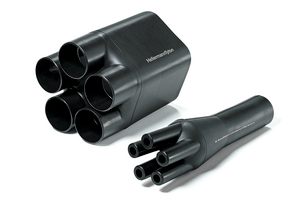

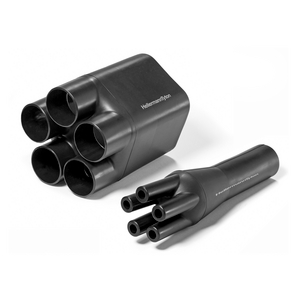

5-Way Outlet Shapes, Breakout Boots
Art.-No. 405-08015 | 508-2-B7W1-PO-X-BK Details

Request your individual offer now

Application Cable breakouts are manufactured from a tough cross-linked polyolefin containing a flame retardant. This allows the breakout to be used for both interior and exterior applications. they offer excellent electrical and mechanical protection. Cable breakouts are supplied with an adhesive inner coating for reliable environmental sealing, and are available for 2,3,4,5 and 6 conductor cables.
Application Tool H6100, E4500, CHG900
Colour Black (BK)
Local order number 508-2-B7W1
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 508-2-B7W1-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 500 Series, in line, low voltage
Product Group 5-Way Outlet Shapes, Breakout Boots
Shrink Ratio up to 3:1
Type 508-2-B7W1
Variant For 5-core cables
Flexibility Semi rigid
HW ± 20% 3.5mm
JW ± 20% 3mm
P ± 10% 180mm
R ± 10% 30mm
S nom 48mm
∅H max b 24.5mm
∅H min a 30mm
∅J max b 7.5mm
∅J min. a 12.7mm
Adhesive W1
Dielectric Strength 15kV/mm
Flammability ASTM D635
Minimum Shrink Temperature - °C +135 °C
Operating Temperature -55 °C to +135 °C
ROHS compliant Yes
Specifications
Tensile Strength 13MPa
Country of Origin GB
GTIN-13 / EAN 5022660466342
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
